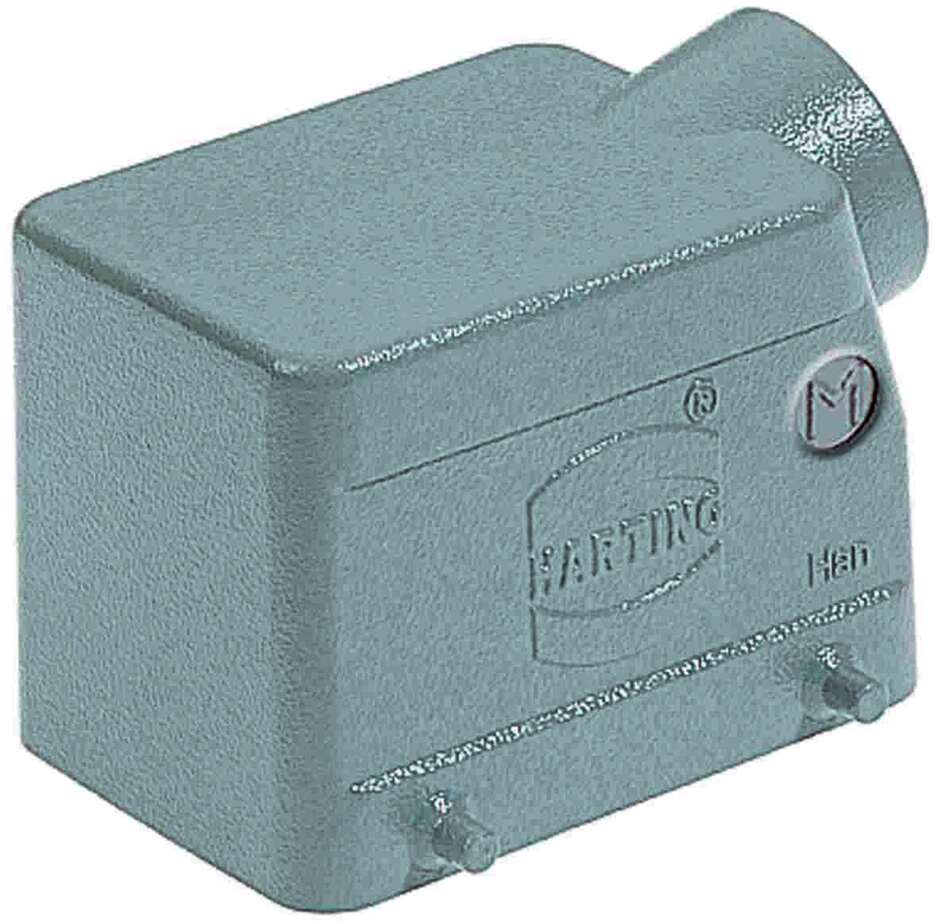

Harting Hood, Double locking, side entry, 1 x M25, size 32A

Product Overview

The Han A Hood Side Entry LC 4 Pegs M25 is a low construction connector hood designed for the most demanding industrial applications requiring maximum mounting stability with lateral cable routing and minimal height profile. Features aluminum die-cast construction with double locking lever mechanism and quad peg mounting system. Part of the Han A® series with size 32A configuration, specifically engineered with low construction (LC) design for installations with limited vertical clearance while providing maximum internal capacity and superior mounting security.

Key Features

• Low construction design for minimal height profile with maximum capacity
• Side entry configuration for lateral cable routing
• Double locking lever for maximum security
• Size 32A with M25 side cable entry
• Quad peg mounting system for superior stability
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Maximum internal capacity with space-efficient design

Technical Specifications

• Housing Size: 32A
• Construction: Low construction (LC)
• Cable Entry: Side entry, 1x M25
• Mounting: 4 pegs for maximum positioning stability
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Double locking lever with Han-Easy Lock®
• Series: Han A®
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Low construction minimizes vertical space requirements despite 32A capacity
• Side entry design optimizes lateral cable routing for large assemblies
• Quad peg system provides maximum mounting stability and precision positioning
• M25 cable gland accommodates substantial cable requirements
• Double locking lever ensures maximum security for high-capacity applications

Applications

• Heavy-duty industrial machinery requiring maximum connector capacity with height restrictions
• Large control systems needing extensive cable management with minimal clearance
• High-power automation equipment in confined vertical spaces with side access
• Manufacturing systems where maximum capacity with low profile is essential
• Power distribution applications requiring robust connections with space constraints
• Critical equipment installations where maximum mounting stability and capacity are essential

Compatibility

• Compatible with Han 32A series inserts
• Works with various Han A® insert configurations
• Part of comprehensive Han A® connector system
• Maximum mounting stability with quad peg design
• Suitable for highest capacity applications requiring low construction benefits
• Accommodates maximum internal capacity in Han A® series

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
