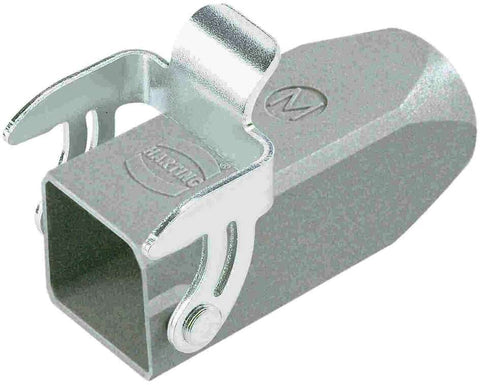

Harting Hood coupler, 1 lever, Single locking, M20, size 3A

Product Overview

The Han A Hood Coupler 1 Lever M20 is a cable-to-cable industrial connector housing designed for flying connections between cable assemblies. Features zinc die-cast construction with single locking lever mechanism and top entry M20 cable gland. Part of the Han A® series with size 3A configuration, specifically engineered as a coupler hood to provide 180-degree cable-to-cable connectivity for modular system connections.

Key Features

• Cable-to-cable coupler design for flying connections
• Single locking lever for secure engagement
• Size 3A with M20 top entry cable gland
• Zinc die-cast construction for durability
• 180-degree cable routing configuration
• Temperature range: -40°C to +125°C
• IP44 protection rating
• Compatible with standard Han A series inserts

Technical Specifications

• Housing Size: 3A
• Type: Coupler hood (cable-to-cable)
• Cable Entry: Top entry, 1x M20
• Configuration: 180-degree cable routing
• Temperature Range: -40°C to +125°C
• Material: Zinc die-cast construction
• Protection: IP44 standard protection
• UL Rating: Type 12 (UL 50/UL 50E)
• Locking: Single locking lever
• Series: Han A®
• Standards: IEC 61984, IEC 60529

Installation Details

• Coupler design enables cable-to-cable connections
• M20 top entry for standard cable management
• 180-degree cable routing for straight-through connections
• Compatible with standard Han 3A mounting systems
• Single lever provides quick and secure engagement

Applications

• Cable-to-cable connections in modular systems
• Flying connections between equipment sections
• Temporary or removable cable extensions
• Modular machinery with separable cable assemblies
• Industrial systems requiring quick cable disconnect
• Equipment where cable routing flexibility is needed

Compatibility

• Compatible with Han A® series inserts
• Works with Han A®, D®, and Q series components
• Part of comprehensive Han A® connector system
• Suitable for various industrial insert configurations
• Enables modular cable assembly connections

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP44 standard protection
• UL Rating: Type 12 protection
• Construction: Durable zinc die-cast housing

Certifications and Compliance

• Standards: IEC 61984, IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Origin: Germany
• Quality: HARTING manufacturing standards

Download existing graphical data for this product:

• Product Datasheet
• Product Data
• EPLAN Data Portal
