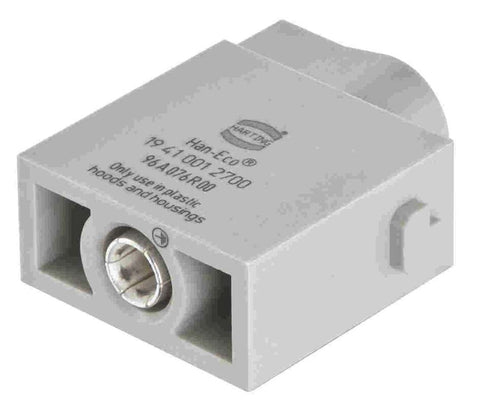

Harting single contact module, female, screw connection, c/s 16 mm²

Product Overview

The Han-Eco Mod.-PE module-f 16-6 AWG is a protective earth (ground) module from the Han-Eco Modular series for industrial applications requiring reliable grounding connections with flexible cable cross-section compatibility. Features female configuration with 16-6 AWG cable capacity for safe and reliable protective earth connections in demanding industrial environments with cost-effective modular design.

Key Features

• Han-Eco Modular series protective earth (PE) module
• Female (f) configuration for protective earth connections
• Cable cross-section range: 1.5-16 mm² (16-6 AWG)
• Cost-effective modular design for flexible system configuration
• Reliable grounding and protective earth functionality
• Compatible with Han-Eco Modular system

Technical Specifications

• Series: Han-Eco® Modular
• Module Type: Protective Earth (PE) contact module, female configuration
• Cable Cross-Section: 1.5-16 mm² (16-6 AWG)
• Configuration: Female (f) contacts
• Temperature Range: Industrial operating range
• Material: High-grade materials for reliable grounding
• Standards: Compliance with protective earth safety standards
• Compatibility: Not for Han-Modular® hinged frames

Installation Details

• Modular design allows flexible system configuration
• Female configuration for protective earth connections
• Accommodates cable cross-sections from 1.5-16 mm² (16-6 AWG)
• Easy integration into Han-Eco Modular connector systems

Applications

• Industrial automation systems requiring protective earth connections
• Machinery and equipment needing reliable grounding
• Control systems with protective earth safety requirements
• Applications demanding flexible cable cross-section compatibility with cost-effective design

Compatibility

• Compatible with Han-Eco Modular connector system
• Part of Han-Eco® Modular series
• Mates with corresponding male PE modules
• Not compatible with Han-Modular® hinged frames

Environmental Protection

• Construction: High-grade materials for reliable grounding performance
• Safety: Protective earth functionality for electrical safety
• Durability: Industrial-grade construction for demanding applications
• Performance: Reliable grounding across specified cable range

Certifications and Compliance

• Standards: Compliance with protective earth and grounding standards
• Safety: Enhanced safety features for protective earth applications
• Materials: Lead content compliance per RoHS exemptions
• Origin: Germany
