Harting Crimp contact, M23, male-c, 00.8 - 0,56mm², 1mm

Product Overview

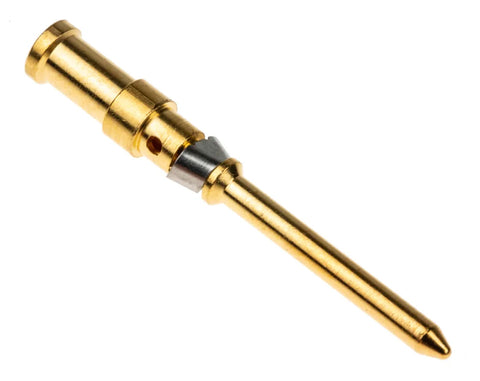

The M23 male-c 1mm (0,08 - 0,56mm²) Au is a male crimp contact for HARTING M23 Signal circular connectors. Features gold-plated copper alloy construction with 1mm contact size for precision signal transmission in fine wire applications requiring superior environmental resistance and signal integrity.

Key Features

• Series: M23 Signal Circular Connectors
• Type: Male crimp contact (pin)
• Contact Size: 1mm
• Current Rating: ≤8 A
• Conductor Cross-Section: 0.08...0.56 mm²
• Wire Size: AWG 28...AWG 20
• Material: Copper alloy
• Plating: Gold plated (Au)
• Termination: Crimp connection
• Application: Signal transmission

Technical Specifications

Precision male crimp contact with gold-plated copper alloy construction for reliable signal transmission. 1mm contact size optimized for fine wire applications with conductor cross-sections from 0.08 to 0.56mm² (AWG 28-20). Current rating of 8A suitable for signal and low-power applications. Crimp termination provides secure, solderless connection. Compatible with M23 Signal connector inserts and housings.

Compliance & Environmental

• Rated current: ≤8 A
• Conductor cross-section: 0.08...0.56 mm² (AWG 28-20)
• Gold-plated copper alloy construction
• Crimp termination technology
• Compatible with M23 Signal series
• Excellent signal integrity
• Superior corrosion resistance

Applications

Industrial instrumentation, data transmission, and control applications requiring reliable signal connections with fine wire compatibility. Ideal for sensor connections, measurement systems, and communication lines where gold plating ensures long-term signal stability and environmental resistance. Perfect for applications in harsh industrial environments where M23 connector environmental protection is combined with precision signal transmission requirements.
