Harting Insert, crimp, male, size 10B, c/s 0.14 - 2.5mm²

Product Overview

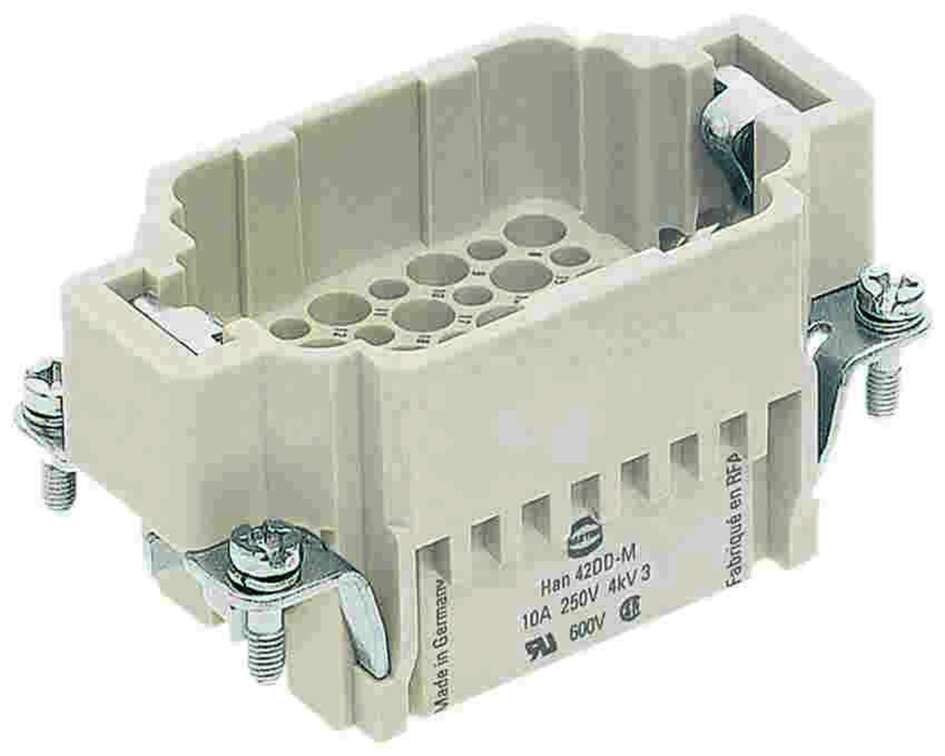

The Han 42DD-SMC-MI-CRT (SKU: 09160423001) is a male insert from HARTING's Han DD® series, designed for crimp termination applications. This high-density rectangular insert features 42 contacts plus PE (protective earth) with a rated current of 10A and accommodates conductor cross-sections from 0.14 to 2.5 mm². The insert is manufactured in RAL 7032 (pebble grey) color and is designed for Size 10B applications, making it ideal for automation and robotics projects.

Key Features & Specifications

• Series: Han DD®
• Category: Inserts
• Gender: Male
• Termination Method: Crimp termination
• Number of Contacts: 42 + PE
• Rated Current: 10A
• Conductor Cross-Section: 0.14 ... 2.5 mm²
• Wire Size: 14-26 AWG
• Size: 10B
• Color: RAL 7032 (pebble grey)
• Temperature Range: -40°C to +125°C
• Rated Voltage (UL): 600V
• Rated Voltage (CSA): 600V
• Rated Voltage: 250V

Applications & Benefits

HARTING Han® Industrial Connectors are suited for the harshest requirements in industrial environments and are used in all applications requiring a safe and removable electrical connection. This high-density connector insert is particularly well-suited for automation and robotics projects where space is at a premium but multiple connections are required.

The field of application for HARTING connectors extends from protected electrical areas in control cabinets to outdoor applications. The Han® Industrial product line incorporates small connectors capable of a few amps up to large multi-way high power connections, enabling sensitive signals of a few milli-volts used in Gigabit transmissions, up to 600 Amps or 5000 Volts for high power applications.

Technical Characteristics

This high-density male crimp insert offers:

• High-quality crimp termination for reliable connections
• Industrial-grade construction for demanding environments
• Compatible with HARTING's modular connector system
• Designed for multiple mating cycles in industrial applications
• High pin count design optimized for space-critical applications
• Note: Crimp contacts must be ordered separately

Compliance & Environmental

• RoHS compliant
• ELV status compliant
• China RoHS compliant
• Material flammability class acc. to UL 94 V-0
• REACH Annex XVII substances: Not contained
• CSA-C22.2 No. 182.3 ECBT8.E235076 certified

Download existing graphical data for this product:

• Product Data Sheet
• Product Datasheet
