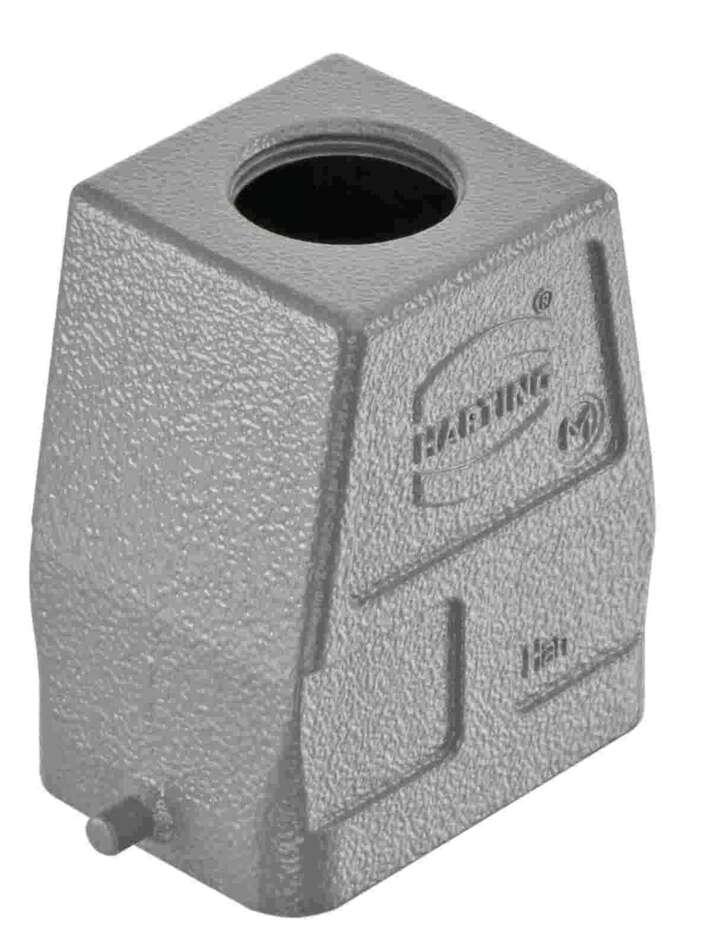

Harting Hood, Single locking, Top entry, M32, size 6B Part number 19300060447

Product Overview

The Han B Hood Top Entry HC 2 Pegs M32 is a high construction connector hood designed for demanding industrial applications requiring enhanced internal space with larger cable capacity and standard top cable routing. Features aluminum die-cast construction with single locking lever mechanism and dual peg mounting system. Part of the Han® B series with size 6B configuration, specifically engineered with high construction (HC) design to provide increased internal volume and M32 cable gland capacity for larger cable assemblies.

Key Features

• High construction design for enhanced internal capacity
• Top entry configuration for standard cable routing
• Single locking lever for secure engagement
• Size 6B with M32 top cable entry for larger cables
• Dual peg mounting system for enhanced stability
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Enhanced cable capacity with M32 gland

Technical Specifications

• Housing Size: 6B
• Construction: High construction (HC)
• Cable Entry: Top entry, 1x M32
• Mounting: 2 pegs for secure positioning
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Series: Han® B
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• High construction provides enhanced internal space for larger cable assemblies
• Top entry design provides standard cable routing from above
• M32 cable gland accommodates larger cable diameters compared to M25 versions
• Dual peg system ensures accurate positioning and mounting stability
• Single lever provides secure engagement with increased internal volume

Applications

• Industrial machinery requiring enhanced cable capacity with larger cable diameters
• Control systems with heavy-duty wiring requiring M32 cable capacity
• Automation equipment needing standard cable routing with increased cable size
• Manufacturing systems where top entry with larger cables is essential
• Power applications requiring robust connections with substantial cable capacity
• Equipment installations where both top entry and enhanced cable diameter are needed

Compatibility

• Compatible with Han 6B series inserts
• Works with various Han® B insert configurations
• Part of comprehensive Han® B connector system
• Enhanced mounting stability with dual peg design
• Suitable for applications requiring high construction benefits
• Accommodates larger cable diameters than standard M25 configurations

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
• Quality: HARTING manufacturing standards
