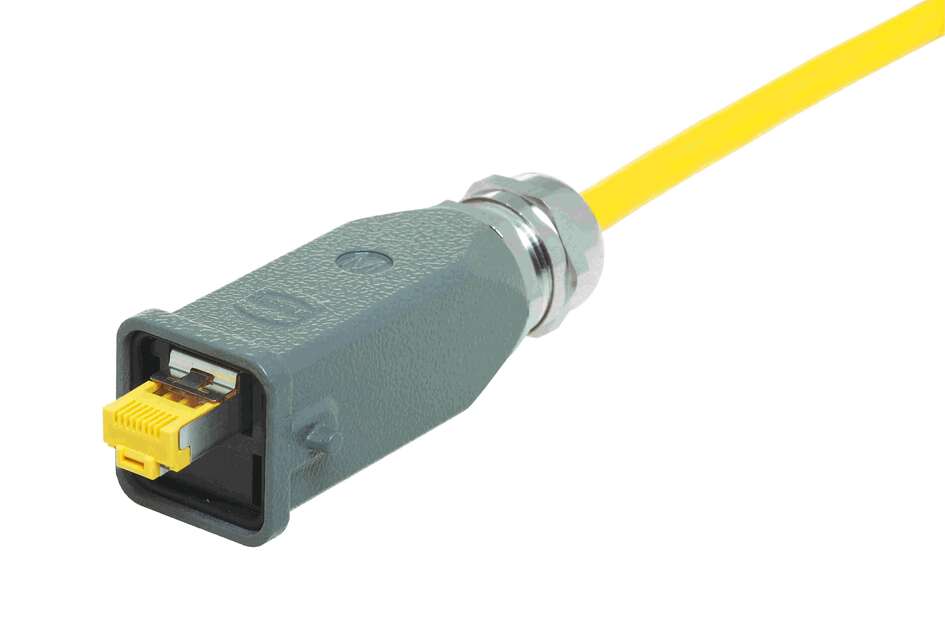

Harting RJ45 Cat6 Plug, 8 contacts, straight, size 3A

Product Overview

The Han3A RJ45 10G Cat6 Plug 8p IDC is a high-performance industrial Ethernet connector designed for demanding 10 Gigabit networking applications requiring Cat6A transmission performance in harsh environments. Features straight configuration with 8-pole IDC technology for complete Ethernet connectivity. Part of the Han3A series with RJ45 specification, providing robust high-speed connectivity for industrial Ethernet applications where maximum data transmission performance and environmental protection are critical.

Key Features

• RJ45 connector with 10G Cat6A transmission performance
• 8-pole configuration for full Ethernet connectivity
• Straight design for standard cable routing
• IDC (Insulation Displacement Connection) termination
• Industrial-grade construction for harsh environments
• Compatible with Han3A connector housings
• Cat6A Class EA performance up to 500 MHz
• Temperature range: -40°C to +70°C
• Cable diameter range: 5-9 mm

Technical Specifications

• Connector Type: RJ45 plug connector
• Performance Category: Cat6A Class EA up to 500 MHz
• Number of Poles: 8-pole (full Ethernet)
• Configuration: Straight plug
• Termination Method: IDC (Insulation Displacement Connection)
• Wire Compatibility: AWG 22-27 (stranded), AWG 22-27 (solid)
• Cable Diameter: 5-9 mm
• Temperature Range: -40°C to +70°C
• Data Rate: 10 Gbps capability
• Series: Han3A
• Element Type: Cable connector
• Application Standard: RJ45

Installation Details

• IDC termination eliminates need for wire stripping
• Straight configuration for standard installations
• Quick and reliable 8-wire cable connection
• Compatible with Cat6A network cables
• Suitable for both solid and stranded conductors

Applications

• High-speed industrial Ethernet networks (10 Gbps)
• Advanced automation systems requiring maximum bandwidth
• Data center and server room industrial connections
• High-performance control networks
• Industrial communication requiring 10G speeds
• Manufacturing systems with demanding data requirements
• Process control networks requiring high-speed connectivity

Compatibility

• Compatible with Han3A connector housings and frames
• Designed for 10 Gigabit Ethernet applications
• Suitable for Cat6A network cable specifications
• Part of comprehensive Han3A connector system
• Compatible with industrial 10G Ethernet protocols

Environmental Protection

• Temperature Range: -40°C to +70°C operational
• IP Protection: Dependent on housing selection
• Industrial Design: Robust construction for harsh environments
• Cable Sealing: Integrated strain relief and sealing
• Shock Resistance: 5g/30ms, 5 shocks per axis (IEC 61373 Category 1 Class B)
• Vibration Resistant: Secure IDC connection technology

Important Configuration

• Requires compatible Han3A housing for complete assembly
• Cable diameter must be within 5-9 mm range
• IDC termination requires proper Cat6A cable preparation
• All 8 poles must be properly terminated for 10G performance
• Performance depends on proper installation and cable quality

Performance Characteristics

• Category: Cat6A Class EA transmission performance
• Frequency Range: Up to 500 MHz
• Data Rate: 10 Gbps Ethernet capability
• Connector Standard: RJ45 compatible
• Transmission Quality: Industrial-grade signal integrity
• Bandwidth: Enhanced performance for high-speed applications

Wire Specifications

• Stranded Wire: AWG 22-27 (7-wire construction)
• Solid Wire: AWG 22-27 (single conductor)
• Cable Diameter: 5-9 mm
• Termination: IDC (no wire stripping required)
• Contact Material: Industrial-grade contacts for reliable high-speed connection
• Conductor Configuration: 8-pole for full Ethernet connectivity

Certifications and Compliance

• Standards: RJ45 connector standard
• Performance: Cat6A Class EA up to 500 MHz
• CSA Certification: CSA-C22.2 No. 182.3
• Industrial Standards: Designed for industrial environments
• Temperature Rating: -40°C to +70°C
• Shock Testing: IEC 61373 Category 1 Class B
• RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant design
• Industrial-grade materials and construction
• Designed for harsh environmental conditions
• Long-term reliability in demanding high-speed applications
