Harting High density module, crimp, Female, 0.09 - 0.52mm²

Product Overview

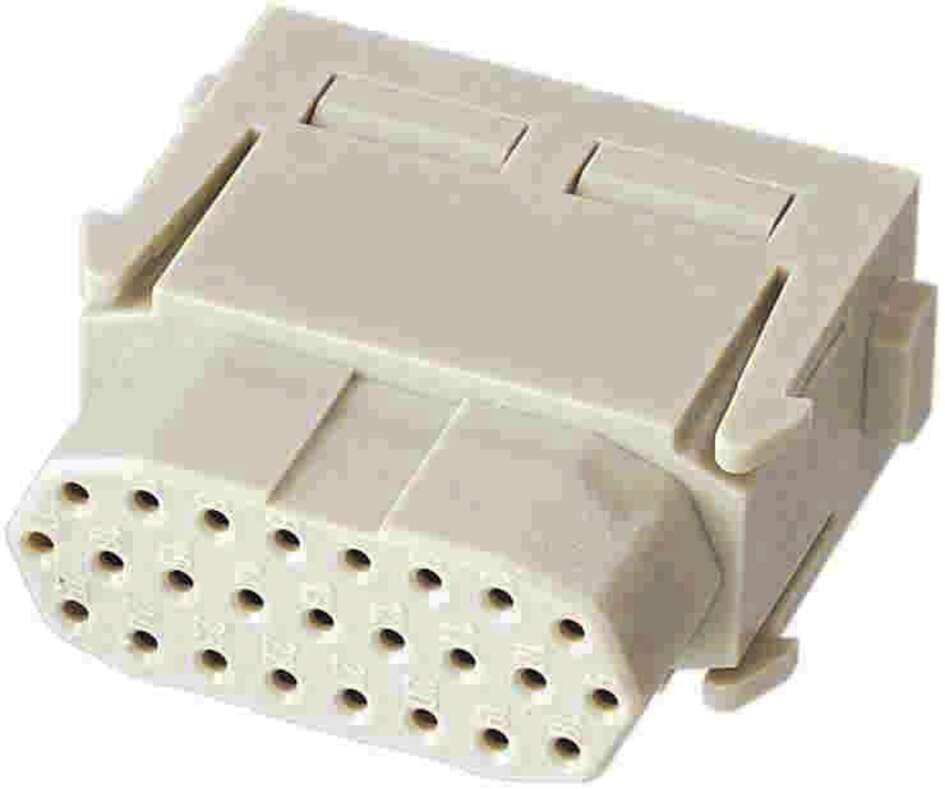

The Han High Density module, crimp female is a high-density signal transmission module designed for the HARTING Han-Modular® connector system with crimp termination technology. This single-module female insert features reliable crimp connections and is engineered for precise 4A signal transmission with 25 contacts for industrial applications requiring maximum contact density using proven crimp technology with pebble grey housing identification.

Key Features

• Series: Han-Modular®
• Category: Modules
• Type: Han® High Density module
• Module Size: Single module
• Termination Method: Crimp termination
• Gender: Female
• Contacts: 25
• Current Rating: 4 A
• Voltage Rating: 50 V (rated voltage), 30 V (UL rated)
• Conductor Cross-Section: 0.08 - 0.52 mm²
• Operating Temperature: -40°C to +125°C
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Flammability Class: UL 94 V-0

Technical Specifications

This female Han High Density crimp module provides reliable signal transmission with a rated current of 4A and conductor cross-section accommodation from 0.08 to 0.52 mm². The module features 50V rated voltage with 30V UL rating and robust crimp termination design optimized for fine wire applications. The operating temperature range spans -40°C to +125°C with proven crimp connection reliability. With 25 contacts in a compact single-module design, this high-density module offers maximum contact density while maintaining the reliability expected from Han-Modular products. The fine conductor cross-section capability makes it ideal for signal and data transmission applications where space optimization and high contact count are essential for socket connections.

Compliance & Environmental

• Operating temperature: -40°C to +125°C
• Material flammability: UL 94 V-0 classification
• Conductor cross-section: 0.08 - 0.52 mm²
• Rated current: 4 A at 50V
• UL rated voltage: 30 V
• Robust polycarbonate housing construction
• Industrial-grade crimp termination system
• Compatible with Han® docking frame systems
• Fine wire application optimized

Applications

Ideal for industrial control systems, data acquisition equipment, and machinery requiring high-density female socket connections with secure crimp termination. Perfect for applications where space optimization is critical and numerous low-current connections need to be consolidated efficiently. Suitable for industrial automation equipment, instrumentation systems, and manufacturing systems where the modular design provides flexibility for signal, data, and low-power circuits. The high contact density and fine wire capability make it particularly useful for complex control systems, sensor networks, measurement equipment, and applications requiring extensive signal socket connections in a compact form factor.
