Harting Insert, Crimp, female, size 6B, c/s 0.14 - 4mm²

Product Overview

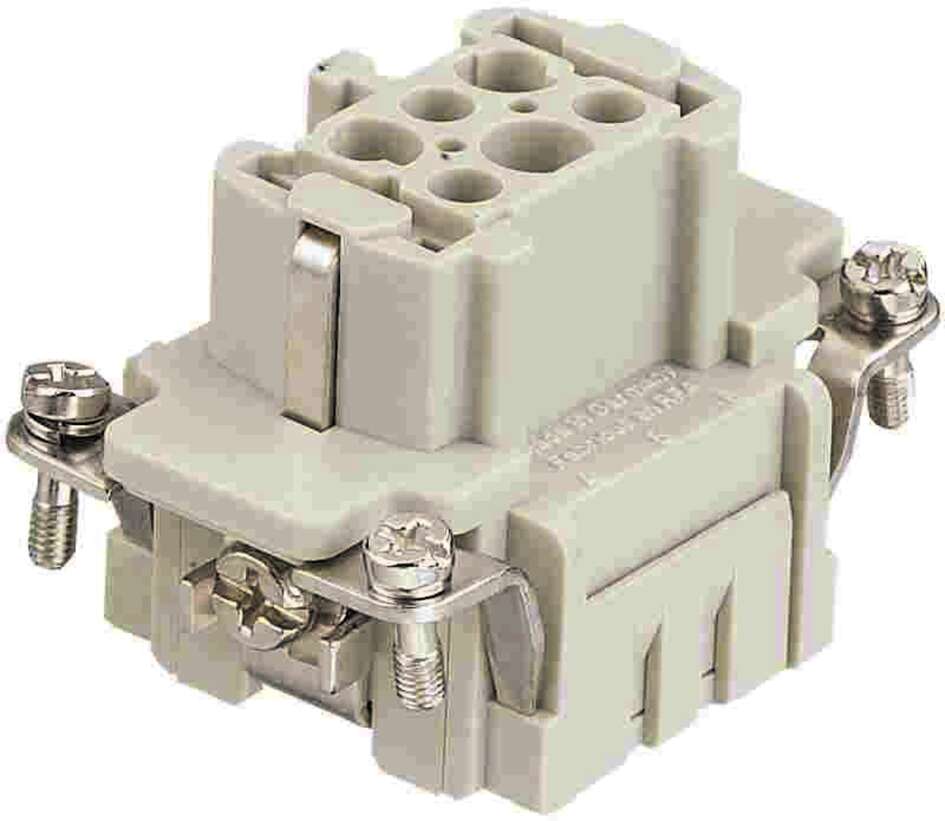

The Han 6E Insert Female Crimp (SKU: 09330062702) is a robust 6-position female insert designed for heavy-duty power connector applications with crimp termination. Part of the renowned Han E® series, this insert provides reliable 16A current capacity with flexible wire acceptance from AWG 26 to AWG 12. Featuring a 6-contact configuration in size 6B format, this insert delivers dependable power reception for industrial applications including injection molding machines and other demanding equipment requiring secure, removable connections with the versatility of crimp termination technology.

Key Features:

• 6-Position Configuration: 6 female contacts for versatile power and signal reception
• Crimp Termination: Flexible connection method for various wire sizes
• 16A Current Rating: Robust current capacity for industrial applications
• Wide Wire Range: Accepts conductors from 0.14mm² to 4mm²
• Temperature Resistant: Operating range from -40°C to +125°C
• UL/CSA Certified: Rated for 600V according to UL and CSA standards
• Flame Retardant: UL 94 V-0 flammability rating
• Durable Construction: Polycarbonate housing for long-term reliability

Technical Specifications:

• Article Number: 09 33 006 2702
• Category: Inserts
• Series: Han E®
• Termination Method: Crimp termination
• Gender: Female (receptacle)
• Number of Contacts: 6 + PE option (7 total possible)
• Rectangular Shell Size: 6B
• Current Rating: 16A
• Voltage Rating: 500V (IEC), 600V (UL/CSA)
• Wire Size Range: AWG 26 to AWG 12 (0.14mm² to 4mm²)
• Operating Temperature: -40°C to +125°C
• Housing Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Flammability Class: UL 94 V-0
• Certification: CSA-C22.2 No. 182.3 PVVA8.E318390

Applications:

Essential for industrial power and signal reception requiring flexible wire termination options. Ideal for injection molding machines, industrial automation systems, control cabinet connections, machinery interconnections, modular equipment designs, field installations, and any application where reliable power reception with versatile wire compatibility is critical for operational flexibility and performance.

Compatibility:

• Housing Compatibility: Compatible with 6B size hoods and housings
• Series Compatibility: Works with Han E® power connector components
• Mating Insert: Pairs with Han 6E insert male crimp (09330062602)
• Crimp Contacts: Requires separate ordering of appropriate crimp contacts
• Wire Compatibility: Accepts wire sizes from 0.14mm² to 4mm² (AWG 26-12)
• System Integration: Designed for Han E® industrial connector systems
• Housing Options: Compatible with Han® B standard hoods/housings
• Standard Compliance: UL508 certified

Installation & Tools:

• Termination Method: Crimp connection (contacts ordered separately)
• Wire Range: Accommodates AWG 26 to AWG 12 (0.14mm² to 4mm²)
• Crimp Tools: Requires appropriate crimping tools for selected contacts
• Contact Selection: Choose contacts based on specific wire size requirements
• Assembly: Easy incorporation into Han E® housings
• Quality Assurance: Industrial-grade construction for reliable performance
• Professional Installation: Suitable for industrial assembly applications
• Flexibility: Wide wire range allows standardization across applications
