Harting Connector, female, grey, 10 contacts, 2.5A

Product Overview

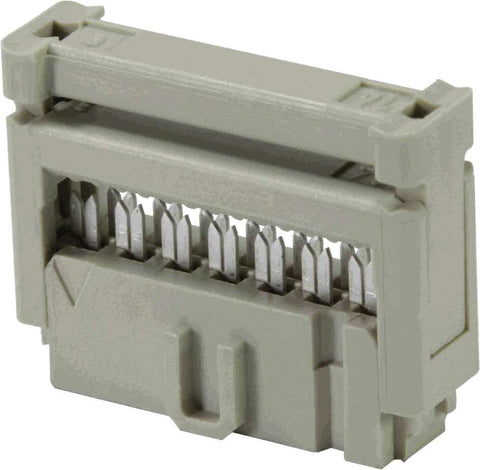

The SEK-18 SV FE TYPA 10P PL2 (SKU: 09185106803) is a female connector from HARTING's SEK series, designed for PCB-to-cable connections. This compact cable connector features 10 contacts arranged in 2 rows and is specifically engineered for IDC flat cable applications with 1.27mm (0.050") pitch. The connector offers a rated current of 2.5A and is manufactured with thermoplastic resin (PBT) in grey color. It complies with Performance Level 2 according to IEC 60603-13, making it ideal for reliable cable-to-board connectivity in electronic applications.

Key Features & Specifications

• Series: SEK
• Category: Connectors
• Element: Female connector
• Connection Type: PCB to cable
• Number of Contacts: 10
• Contact Rows: 2
• Contact Spacing (Termination Side): 2.54mm
• Contact Spacing (Mating Side): 1.27mm
• Rated Current: 2.5A
• Cable Compatibility: IDC flat cable 1.27mm (0.050") pitch
• Wire Gauge: AWG 28/7 - AWG 26/7
• Temperature Range: -55°C to +125°C
• Material: Thermoplastic resin (PBT)
• Color: Grey
• Performance Level: 2, acc. to IEC 60603-13

Applications & Benefits

HARTING SEK female connectors are designed for reliable PCB-to-cable connections in electronic applications where IDC flat cable termination is required. These connectors are particularly well-suited for data transmission, signal distribution, and control applications in industrial electronics, telecommunications, measurement systems, and computer peripherals.

The TYPA design provides secure cable retention and reliable electrical connections, making it ideal for applications requiring consistent performance in demanding environments. The connector's compact design and standardized pitch make it compatible with standard IDC flat cables, simplifying system design and assembly processes.

Technical Characteristics

This female cable connector offers:

• IDC flat cable termination for AWG 28/7 - AWG 26/7 wires
• Dual pitch design: 2.54mm termination side, 1.27mm mating side
• High current capacity (2.5A) for power and signal applications
• High-quality copper alloy contacts for reliable conductivity
• Au over Ni mating side, Sn over Ni termination side plating
• Excellent electrical performance with low contact resistance (≤ 20 mΩ)
• High insulation resistance (>10⁹ Ω)
• Robust PBT construction for industrial applications
• Compatible with HARTING SEK connector system
• Mating cycles ≥ 250 for reliable operation
• Insertion and withdrawal force ≤ 32 N

Compliance & Environmental

• Performance Level 2, acc. to IEC 60603-13
• Test voltage Ur.m.s. 1 kV
• Isolation group IIIa (175 ≤ CTI < 400)
• RoHS compliant
• Operating temperature range: -55°C to +125°C
• High insulation resistance and low contact resistance
• Industrial-grade thermoplastic construction
• UL recognized components
