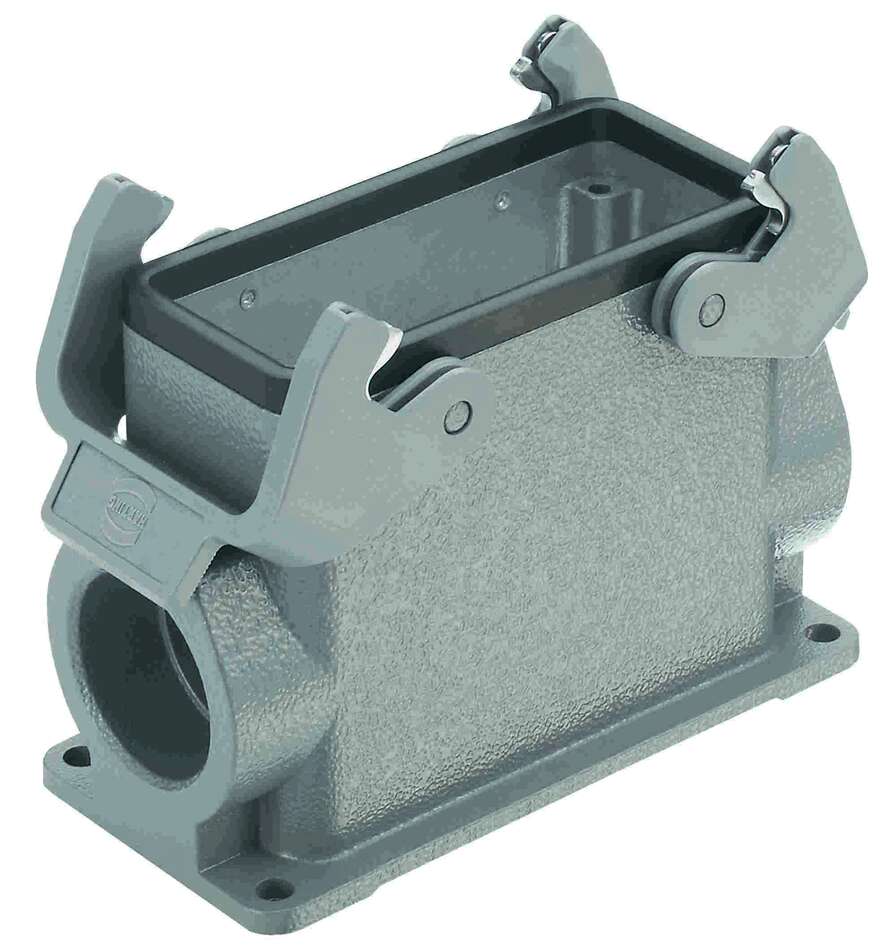

Harting Surface housing, double locking, side entry, 2x M32, size 16B Part number 19300160272

Product Overview

The Han B Base Surface HC 2 Levers 2xM32 is a high construction connector base for industrial surface mounting applications requiring maximum connection security and ultimate cable capacity. Features aluminum die-cast construction with dual locking levers and dual M32 cable glands combining enhanced reliability with maximum cable diameter accommodation for the most demanding heavy-duty installations.

Key Features

• High construction (HC) design for maximum robustness
• Surface mounting with dual locking levers for maximum security
• Size 16B with dual M32 side cable entries for largest cables
• Aluminum die-cast construction, RAL 7037 finish
• Dual lever system with maximum cable diameter capability
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 16B
• Construction: High construction (HC)
• Cable Entry: Side entry, 2 x M32
• Locking System: Dual levers for maximum security
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• High construction for maximum durability and security
• Dual lever system provides enhanced locking force
• Dual M32 cable glands accommodate largest cable diameters
• Compatible with Han 16B series hoods and inserts

Applications

• Critical high-power applications requiring maximum security with dual largest cables
• Heavy-duty power distribution systems needing dual lever reliability and M32 capacity
• Safety-critical installations where connection integrity and maximum cable capacity are essential
• Industrial equipment requiring ultimate robustness with dual maximum cable diameter

Compatibility

• Compatible with Han 16B series hoods and inserts
• Part of Han B® connector system
• High construction with dual lever security and maximum cable capacity

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with dual lever security

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
