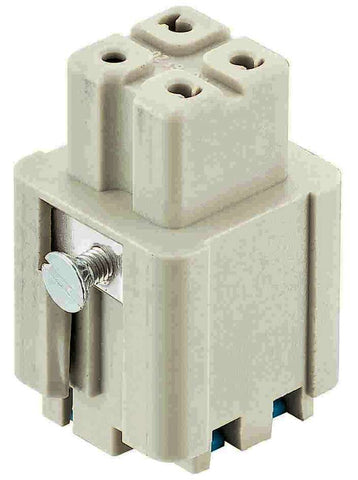

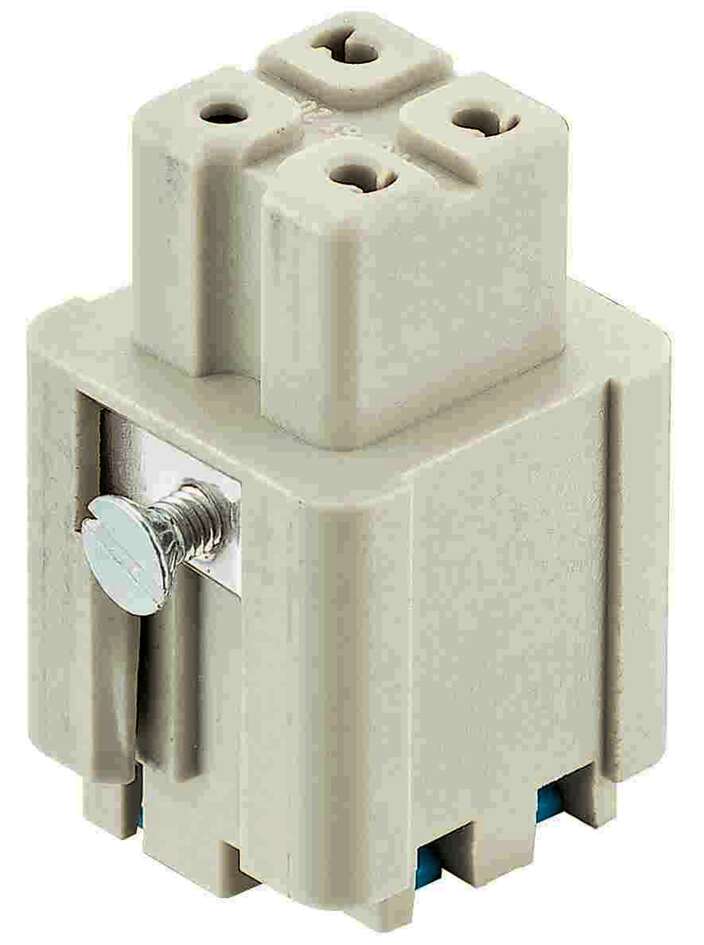

Harting Insert, female, size 3A, c/s 0.5 - 2.5mm². Part number 09200032733

Product Overview

The Han 3A female insert with Quick-Lock (Article No.: 09 20 003 2733) is a female socket insert from HARTING's Han A® series featuring Han-Quick Lock® termination for tool-free wire connection up to 2.5 mm².

Key Features:

• Han A® series female socket insert with Quick-Lock® termination
• 3 contacts plus PE configuration, 10A current rating
• Tool-free wire connection for 0.5 - 2.5 mm² conductors
• Operating temperature: -40°C to +125°C
• Polycarbonate construction with UL94 V-0 flammability rating

Technical Specifications:

• Article Number: 09 20 003 2733
• Series: Han A®, Size 3A
• Gender: Female (socket)
• Contacts: 3 + PE
• Current Rating: 10A
• Rated Voltage: 230/400V (600V UL)
• Conductor Cross-Section: 0.5 - 2.5 mm²
• Operating Temperature: -40°C to +125°C
• Material: Polycarbonate, UL94 V-0

Compliance & Certifications:

• CSA: C22.2 No. 182.3 ECBT8.E235076
• UL Rated: 600V
• RoHS Compliant: Yes

Applications: Ideal for automation systems, industrial machinery, and power distribution where quick assembly and maintenance are required. The Han-Quick Lock® system eliminates tools for wire installation/removal, significantly reducing assembly time.

Benefits:

• Tool-free Quick-Lock® termination reduces assembly time
• Wide conductor range accommodates various wire sizes
• Extended temperature range for extreme environments
• Compatible with Han A® 3A series components

Download existing graphical data for this product:

• Technical Data Sheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD & Engineering Data
