xProduct Overview

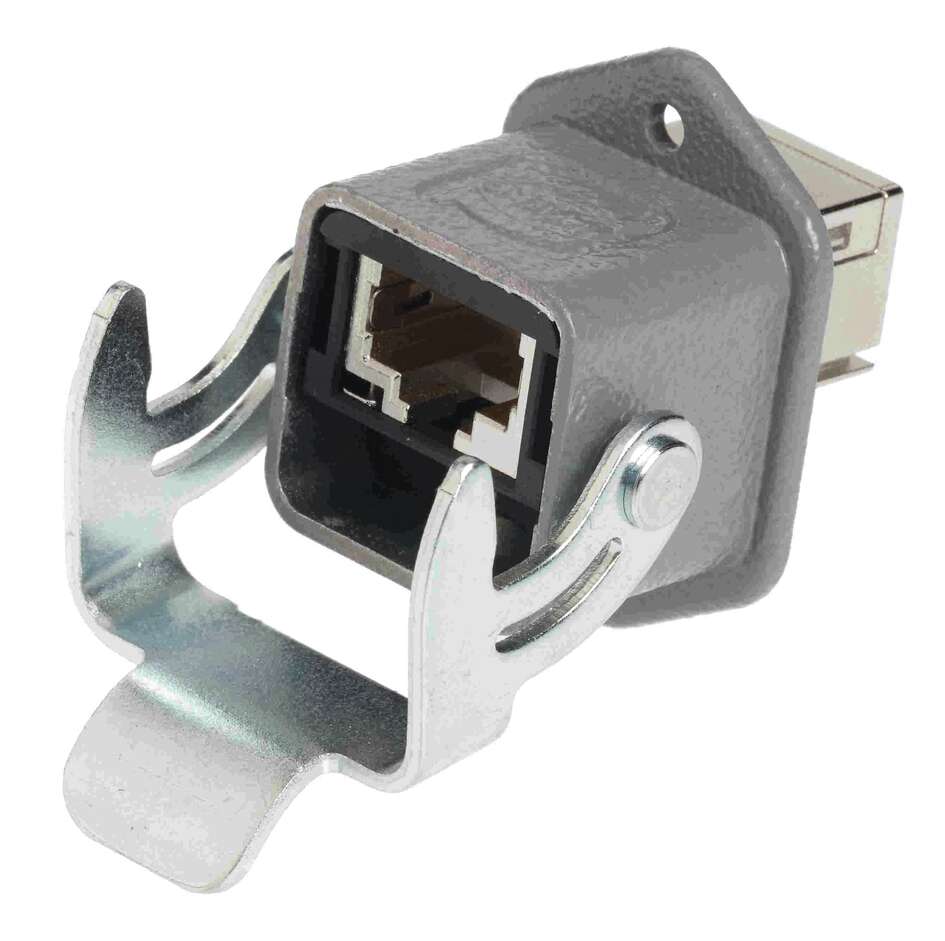

The RJI Han 3A RJ45 PFT Cat6A Metal is a panel feed-through connector for 10 Gigabit Ethernet applications requiring bulkhead mounting. Features zinc die-cast construction with Cat6A performance for high-speed data transmission through panel installations. Part of the HARTING RJ Industrial series with Han 3A configuration, providing robust connectivity where panel mounting and environmental protection are critical.
Key Features
- Panel feed-through design for bulkhead mounting
- Cat6A performance supporting 10 Gigabit Ethernet
- Zinc die-cast housing with powder coating
- Dual port: Han RJ45 (IP65/IP67) and standard RJ45 (IP20)
- Tool-free connection with captive wire manager
- Cable diameter: 4.5-9 mm
- Full shielding with 360° contact
- Size 3A compact design
Technical Specifications
- Connector Type: Panel feed-through RJ45
- Performance: Cat6A for 10 Gigabit Ethernet
- Contacts: 8 contacts
- Wire Compatibility: AWG 22-27, 4.5-9 mm cable diameter
- Current Rating: 1.5A at 125V AC
- Housing: Zinc die-cast, powder-coated
- IP Protection: IP65/IP67 (Han side), IP20 (RJ45 side)
- Mating Cycles: 500 minimum
- Series: HARTING RJ Industrial
Applications
- Industrial control panels requiring Ethernet pass-through
- Equipment enclosures with external network connections
- Manufacturing systems with panel-mounted networking
- Process control cabinets requiring protected connections
- Industrial automation with bulkhead requirements
Compatibility
- Compatible with Han 3A system components
- Suitable for Cat6A network cables
- Standard RJ45 equipment compatibility
- Part of HARTING RJ Industrial series
Environmental Protection
- IP65/IP67: Dust-tight and water protection (Han side)
- IP20: Standard protection (RJ45 side)
- Shielding: 360° EMI protection
- Housing: Zinc die-cast with protective coating
Certifications and Compliance
- Standards: Cat6A transmission standard
- Performance: 10 Gigabit Ethernet capable
- IP Protection: IP65/IP67 per IEC 60529
- Current Rating: 1.5A at 125V AC
- RoHS: Compliant
- Country of Origin: Germany
Download existing graphical data for this product:
Specifications
x| IP Rating | IP65 IP67 |
| Tariff | 85366990 |
| GTIN | 5713140059696 |
| ETIM | EC002636 |
| Compliance/Certifications | UL 1977 ECBT2.E102079\nCSA-C22.2 No. 182.3 ECBT8.E102079 / DNV GL\r |
| Material: Housing / Grip | Zinc die-cast |
| Packaging Size | 1 pc(s) |
| Weight (g) | 57g |
| Communication | RJ45 |
| Mating Cycles / Life Span | ≥500 |
| Data Transmission Rate | 10 Mbit/s - 100 Mbit/s - 1 Gbit/s - 2.5 Gbit/s - 5 Gbit/s - 10 Gbit/s |
| Colour | Grey |
