Description

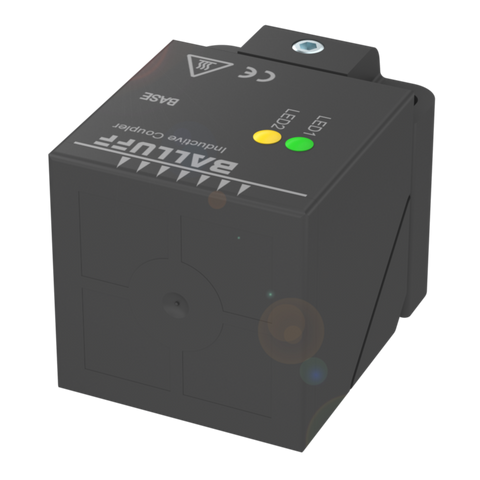

xThis inductive coupler forms the female half of a non-contact connection system, transferring power and data across an air gap without direct electrical contact. It operates on a 24VDC supply and communicates via IO-Link 1.1, connecting through an M12x1, 5-pin female interface. With an IP67 rating and a PBTP sensing surface, it suits panels and machine sections where a sealed, wear-free alternative to plug connectors is required.
Key specifications
- IP rating: IP67
- Connection: M12x1 / Female / 5-pin
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE |
| Material: Sensing Surface / Contacts | PBTP |
| Connection Type | M12x1 / Female / 5-pin |
| Tightening Torque | Tightening torque max. 40 Nm Tightening torque pigtail 0.6 Nm |
| Interface | IO-Link 1.1 |
| Voltage Output | 24VDC |
