Description

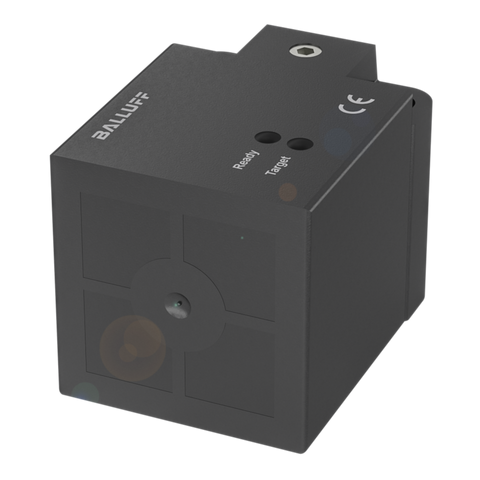

xThis inductive sensor with Factor 1 technology is designed for non-flush mounting and provides a reliable switching distance of 40 mm. It offers PNP normally open (NO) and normally closed (NC) outputs. The sensor is immune to magnetic fields and operates within a voltage range of 10 to 30 VDC. It is ideal for use in industrial environments with its IP67 protection.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PBT |
| Material: Sensing Surface / Contacts | PBT |
| Part Depth (mm) | 40mm |
| Part Width (mm) | 40mm |
| Part Height (mm) | 62mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Rated Operating Distance (mm) | 40mm |
| Switching Output | PNP normally open/normally closed (NO/NC) |
| Switching Frequency (Hz) | 100 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
