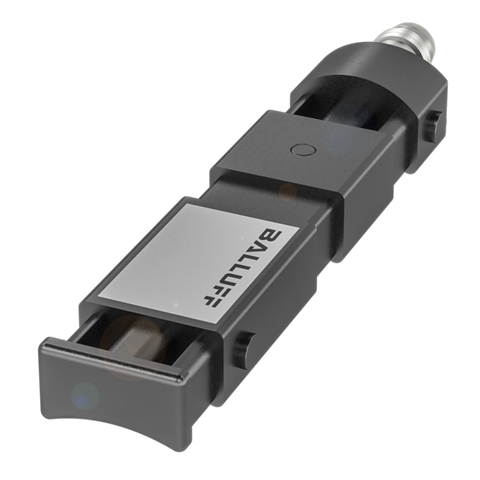

Balluff BES Z06K-PSC16F-S49G Inductive sensor, PNP, NO
Balluff BES Z06K-PSC16F-S49G Inductive sensor, PNP, NO

Balluff BES Z06K-PSC16F-S49G Inductive sensor, PNP, NO

This inductive sensor is designed for the detection of metallic objects and offers a sensing distance of 16 mm. It features a PNP normally open (NO) output, operates with 10 to 30 VDC, and provides IP67 protection for use in demanding industrial applications.
Vendor: Balluff
SKU: BES0428
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 2 left in stock
Ask an expert
Description
Description
x

This inductive sensor is designed for the detection of metallic objects and offers a sensing distance of 16 mm. It features a PNP normally open (NO) output, operates with 10 to 30 VDC, and provides IP67 protection for use in demanding industrial applications.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE WEEE / IEC 60947-5-2
Material: Housing / GripPA 6.6
Connection TypeM8x1 / Male / 3-pin
Rated Operating Distance (mm)16mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)10 Hz
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
