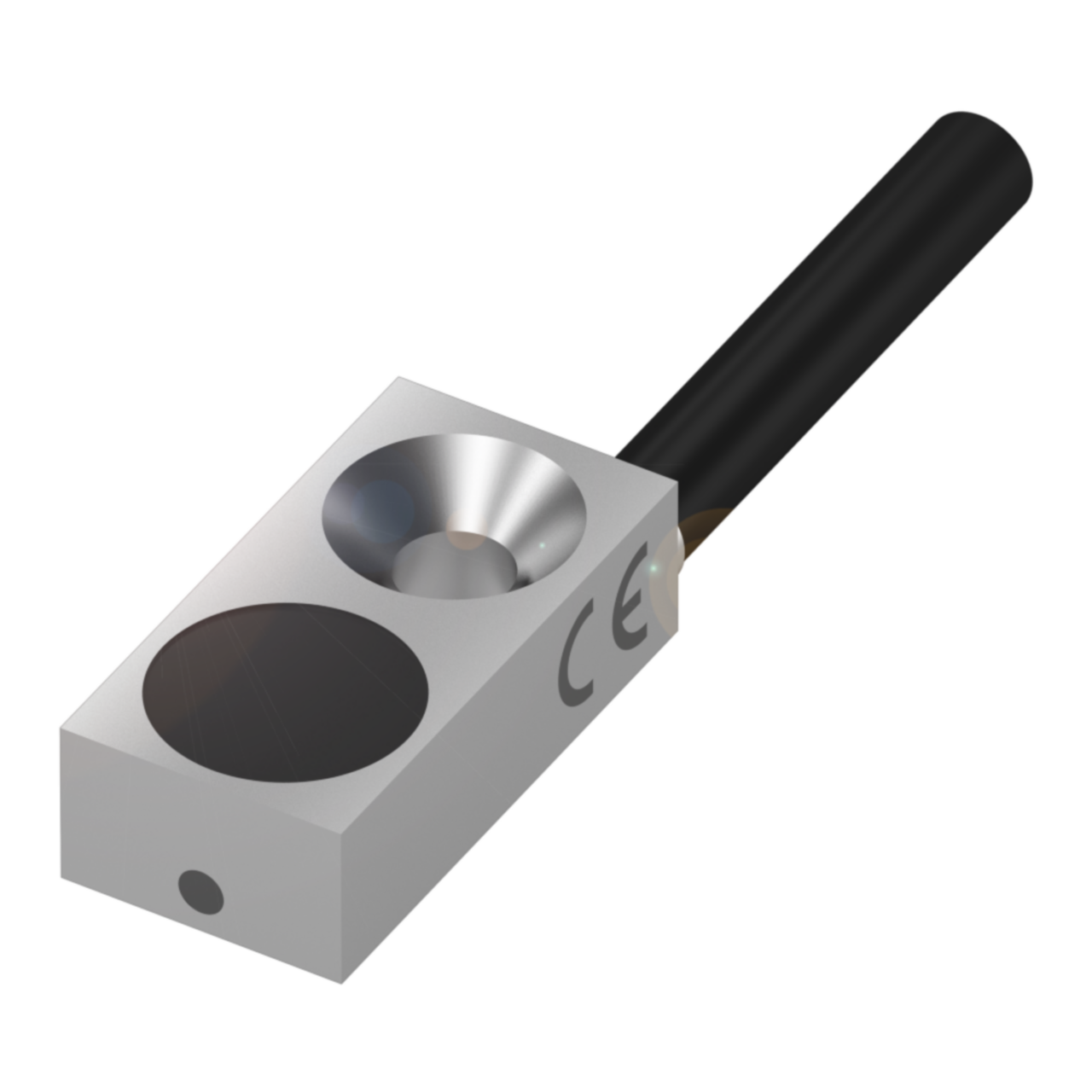

Balluff BES R04MC-PSC20B-EP02-106 Inductive sensor, PNP, NO Part number BES04F6

This is an inductive proximity sensor with a PNP normally open switching output, designed for flush mounting in compact automation assemblies. It detects targets within a 2 mm sensing range and operates at switching frequencies up to 5000 Hz, suited to applications requiring fast response. The housing is constructed from nickel-free coated brass with a ceramic sensing face, rated IP67 and fitted with a 2.00 m PUR cable for direct connection, allowing use in wet or contaminated industrial environments across an ambient temperature range of -25 to 70 °C.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 16 x 8 x 4.7 mm
