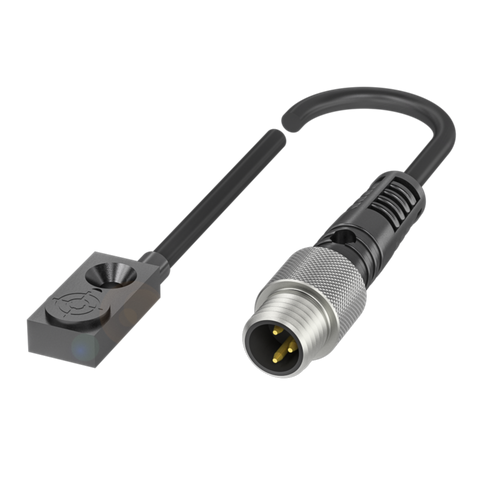

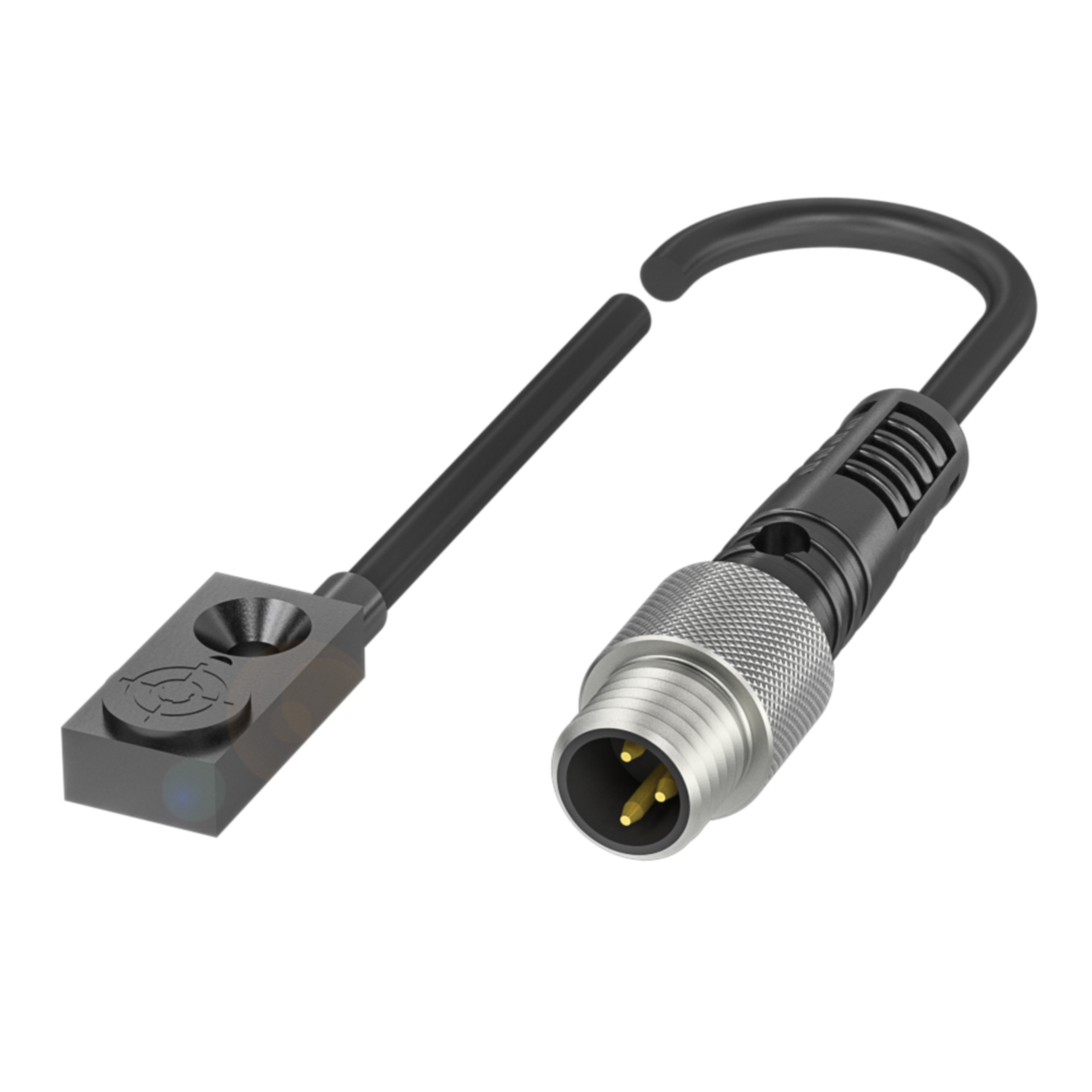

Balluff BES R04KC-PSC15B-EP00,3-GS49 Inductive sensor, PNP, NO Part number BES01YE

This is an inductive proximity sensor with a PNP normally open switching output, designed for flush mounting in a compact 16 x 8 x 4.7 mm housing. It detects targets within a sensing range of 1.5 mm and operates from a 10...30 VDC supply, connecting via an M8x1 three-pin cable connector. The PA 6, GF30 housing and IP67 rating suit installation in industrial automation equipment and machine panels where space is limited and reliable flush detection is required.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 16 x 8 x 4.7 mm
