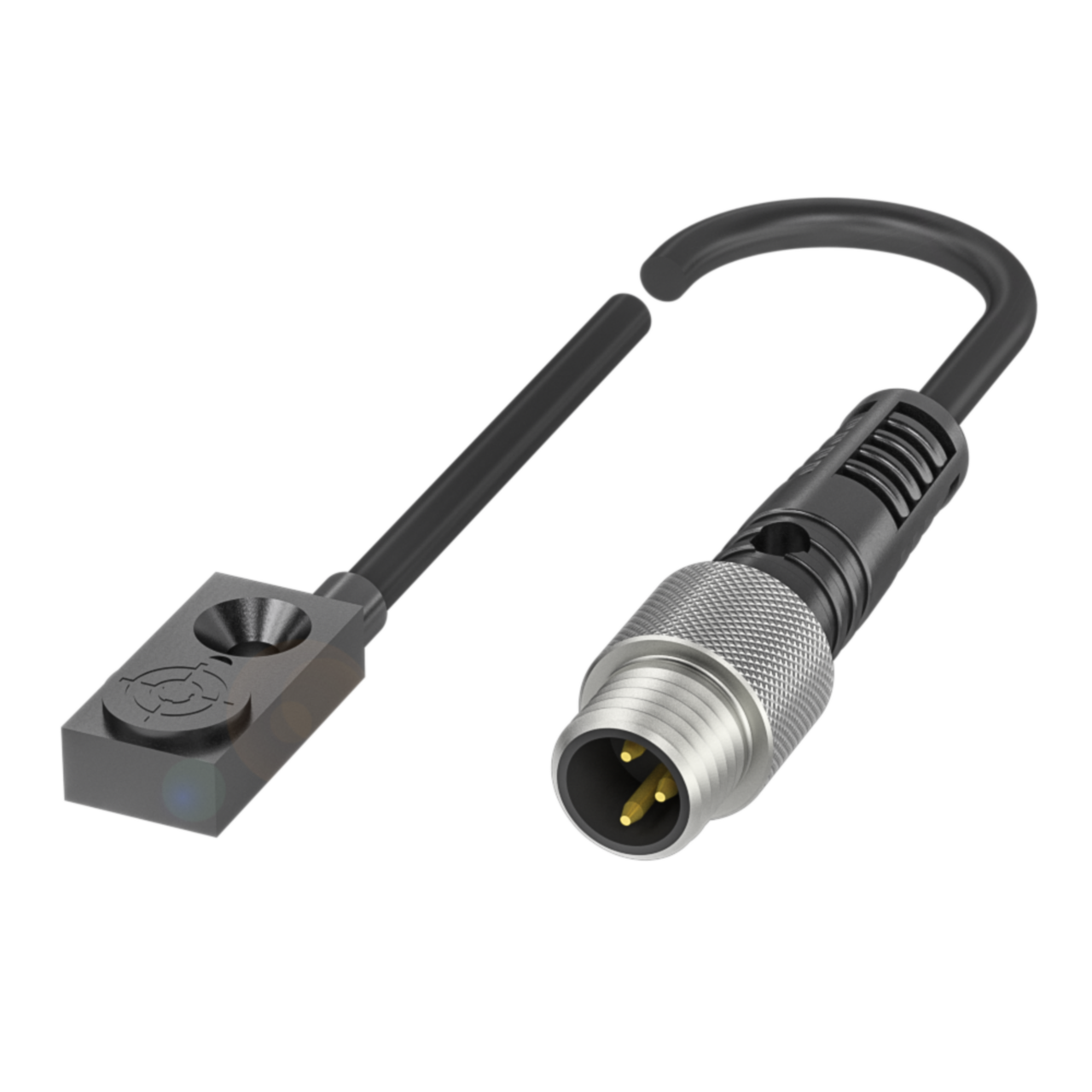

Balluff BES R04KC-PSC15B-EP00,13-GS49 Inductive sensor, PNP, NO Part number BES01YA

This is an inductive proximity sensor with a flush-mountable housing measuring 16 x 8 x 4.7 mm, designed to detect metallic targets at ranges up to 1.5 mm. It provides a PNP normally open switching output with a switching frequency of 2500 Hz, and connects via an integral M8, 3-pin cable with connector. The housing is constructed from PA 6, GF30 and carries an IP67 rating, suiting installation in industrial automation panels and machinery operating across a temperature range of -25 to 70°C.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable with connector, M8x1-Male, 3-pin, 0.13 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 16 x 8 x 4.7 mm
