Balluff BES R03KC-PSC30B-EV02 Inductive sensor, PNP, NO Part number BES01WU

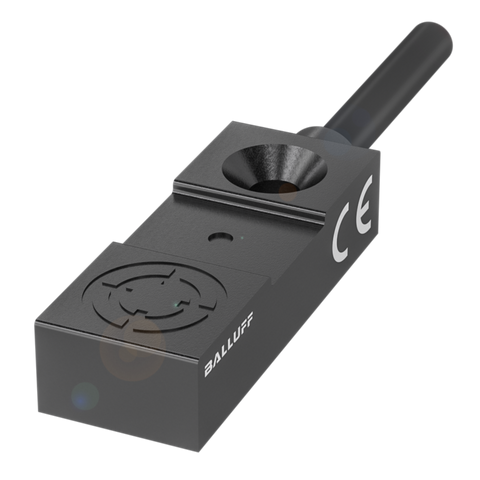

This Balluff BES R03KC-PSC30B-EV02 is an inductive proximity sensor with a PNP normally open output, providing a 3 mm sensing range for flush mounting applications. Housed in a PA 6, GF30 body measuring 30 x 10 x 6 mm and rated IP67, it is suited to detecting metal targets in industrial environments where dust or moisture exposure is expected. It operates from a 10...30 VDC supply, switches at up to 3000 Hz, and connects via an integral 2.00 m PVC cable, making it appropriate for compact machine and panel-mounted automation applications across an ambient temperature range of -25...70 °C.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PVC
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 30 x 10 x 6 mm
