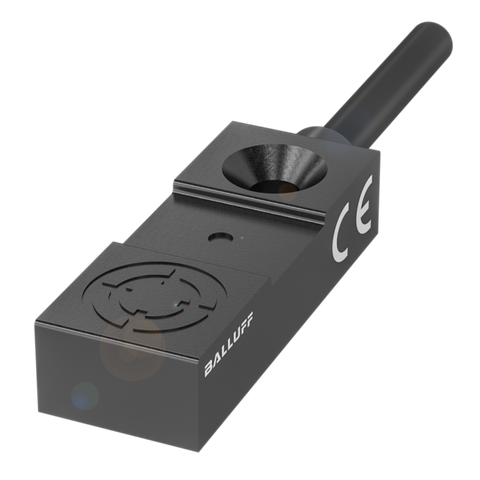

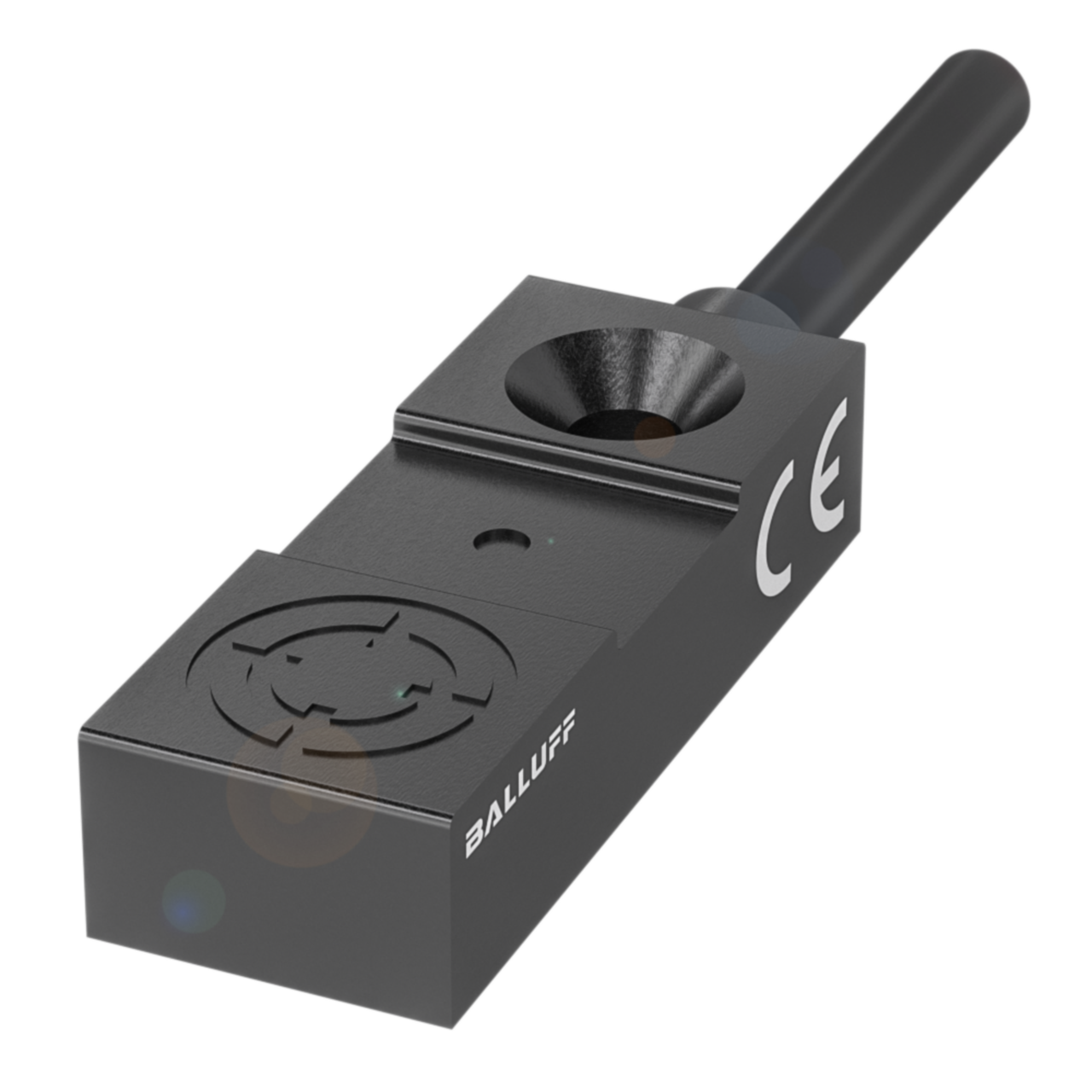

Balluff BES R03KC-PSC30B-EP05 Inductive sensor, PNP, NO Part number BES01WT

The BES R03KC-PSC30B-EP05 is an inductive proximity sensor with a PNP normally open output, designed for flush mounting in a 30 x 10 x 6 mm housing. It detects targets within a 3 mm sensing range and switches at frequencies up to 3000 Hz, operating from a 10...30 VDC supply. Housed in PA 6, GF30 material with an IP67 rating and a 5 m TPU cable connection, it suits automation applications requiring reliable position or presence detection in industrial panels and machinery, including installations across the -25...70 °C ambient range.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 5.00 m, TPU
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 30 x 10 x 6 mm
