Description

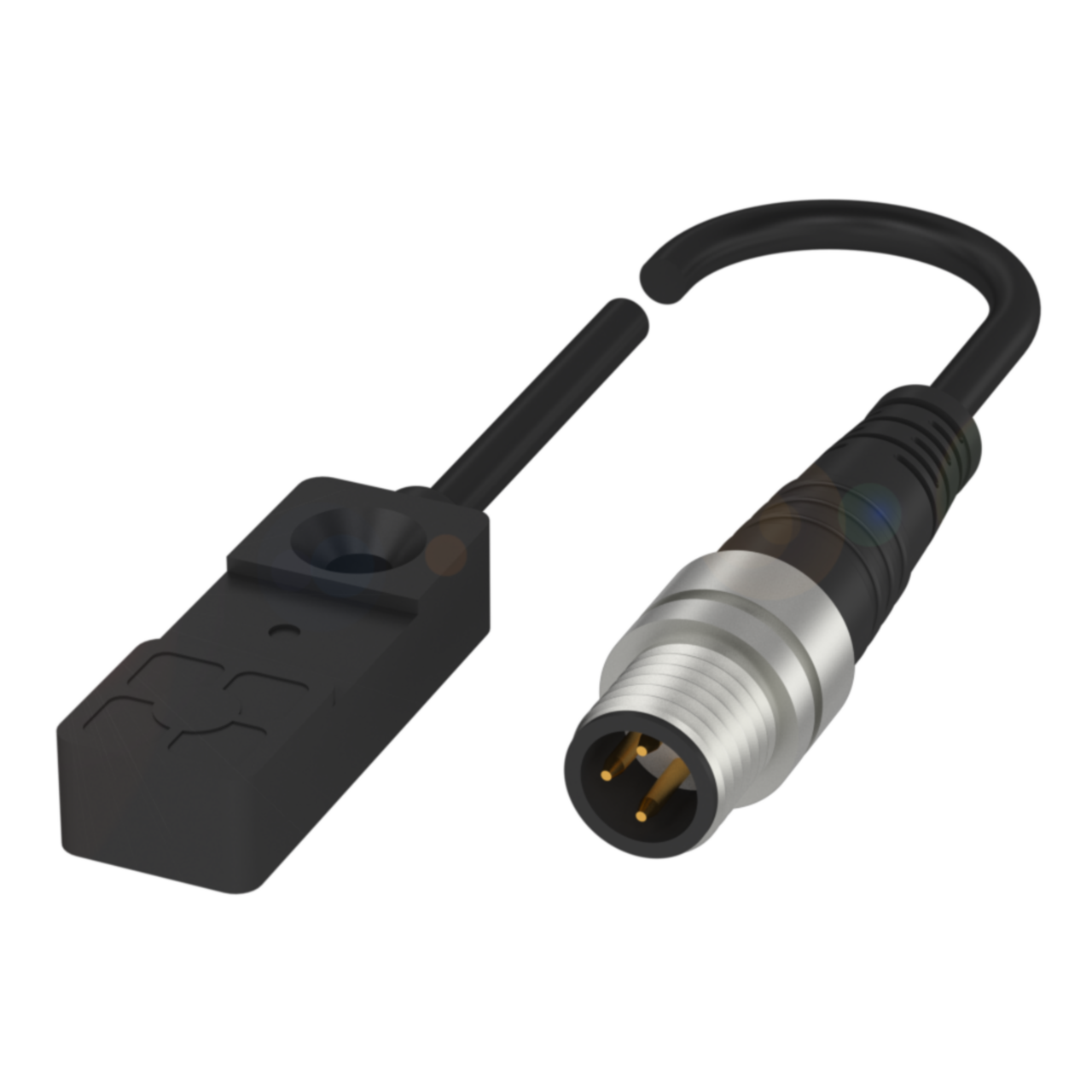

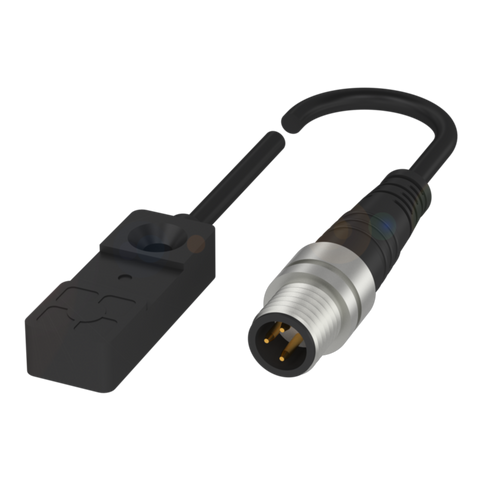

xThis inductive sensor detects the presence of metal targets without physical contact, switching a PNP normally open output at a rated operating distance of 3mm. It operates from 10-30 VDC, offers a switching frequency of 3000 Hz, and connects via an M8x1 three-pin male connector, with an IP67-rated GF30/PA6 housing suited to flush mounting in panels and machine applications. The construction and IP67 rating make it suitable for use in environments where dust and moisture ingress must be resisted.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M8x1 / Male / 3-pin
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | GF 30 / PA 6 |
| Material: Sensing Surface / Contacts | GF 30 / PA 6 |
| Part Depth (mm) | 10mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 6mm |
| Connection Type | M8x1 / Male / 3-pin |
| Rated Operating Distance (mm) | 3mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 3000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 100 mA |
