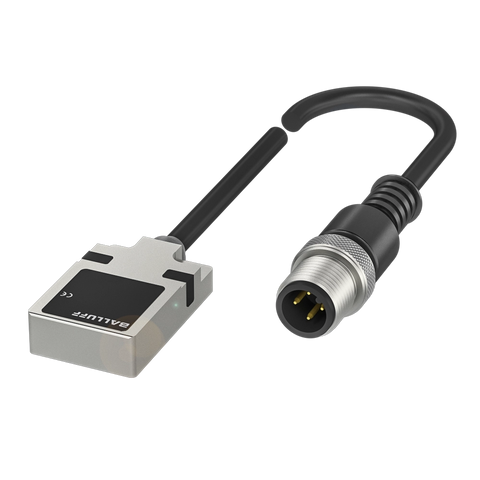

Balluff’s standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
IP Rating | IP67 |
Protection Against Impact | Yes |
Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
Material: Housing / Grip | Zinc die-casting |
Material: Jacket / Cover Nut | PUR |
Material: Sensing Surface / Contacts | PA 12 |
Part Width (mm) | 20mm |
Part Length (mm) | 32mm |
Part Height (mm) | 8mm |
Cable Diameter (mm) | 3.8mm |
Connection Type | M12x1 / Male / 4-pin / A-code |
Rated Operating Distance (mm) | 7mm |
Switching Output | PNP normally open/normally closed (NO/NC) |
Switching Frequency (Hz) | 150 Hz |
Rated Insulation Voltage | 75 VDC |
Operating Voltage | 10 - 30 VDC |
Rated Voltage | 24 VDC |
Mounting Type | Flush mounting |
