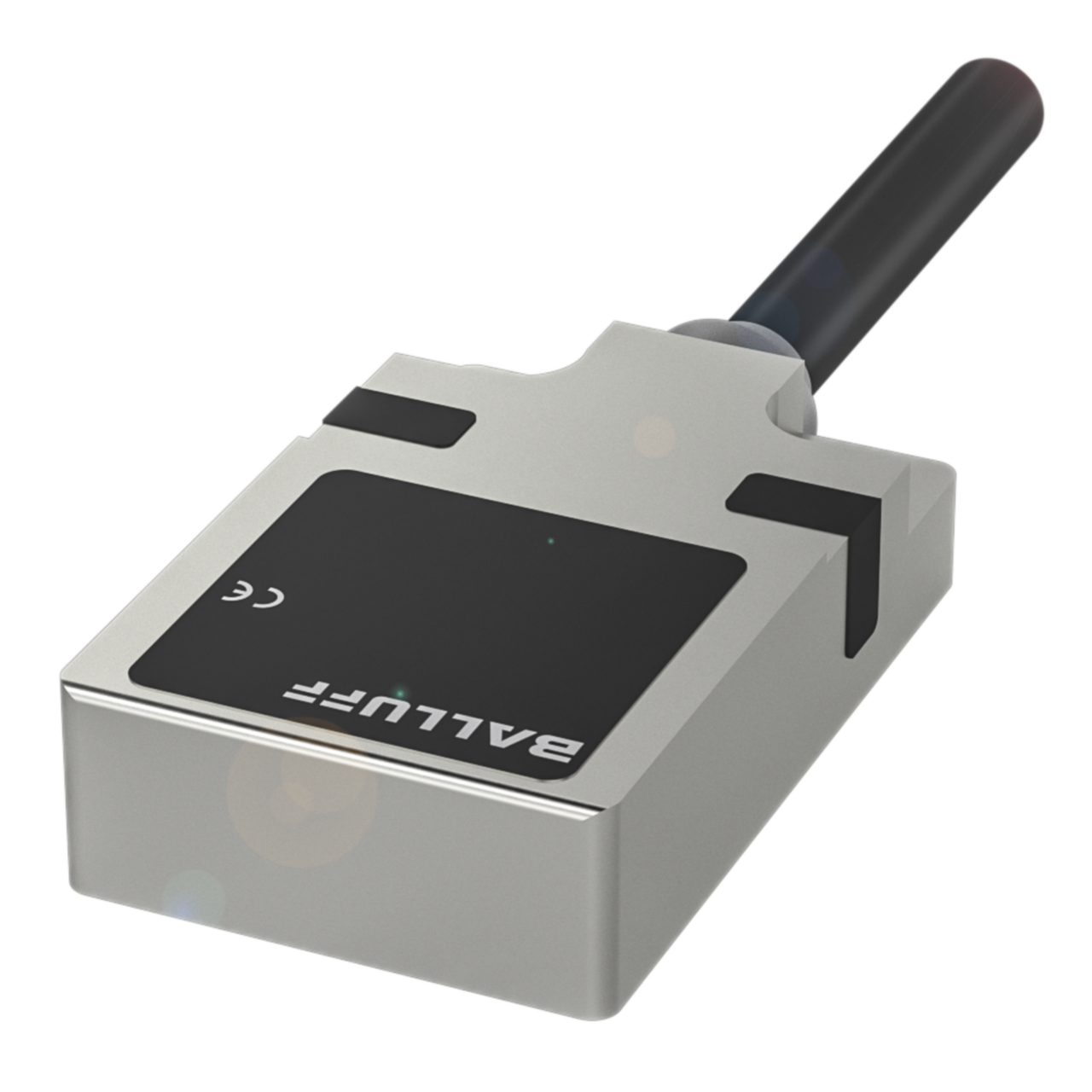

Balluff BES R01ZC-NAC70B-BP05 Inductive sensor, NPN, NO/NC Part number BES01W0

This inductive sensor detects metal targets at ranges up to 7 mm and is designed for flush mounting in the 32 x 20 x 8 mm zinc die-cast housing. It provides an NPN switching output configurable as normally open or normally closed, operates from 10...30 VDC, and switches at up to 150 Hz. With an IP67 rating, a PA 12 sensing face and a 5 m PUR cable, it suits panel and machine-mounted position and presence detection in industrial automation applications across an ambient range of -25 to 70 °C.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 5.00 m, PUR
• Output: NPN normally open/normally closed (NO/NC)
• Operating temperature: -25...70 °C
• Dimensions: 32 x 20 x 8 mm
