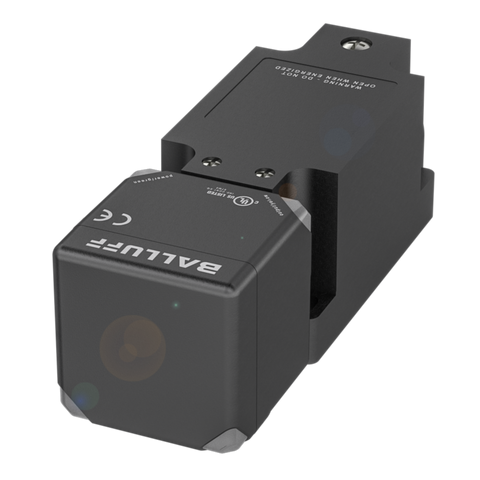

xThe Balluff BES Q40KU-UPU40F-KM20 is an inductive sensor. It connects via Screw terminals and operates from 20...275 VDC/20...253 VAC. The housing is rated IP67 and the unit is specified for -25...85 °C. Approvals: CE, UKCA, cULus, CCC, WEEE.
Key specifications
- IP rating: IP67
- Operating voltage: 20...275 VDC/20...253 VAC
- Connection: Screw terminals
- Output: NO/NC
- Operating temperature: -25...85 °C
- Dimensions: 40 x 40 x 118 mm
Specifications
x| dimension | 40 x 40 x 118 mm |
| style_housing | 40x40 |
| installation | for flush mounting |
| switching_output | NO/NC |
| housing_material | Plastic |
| material_sensing | PA 6.6 |
| connection | Screw terminals |
| operating_voltage | 20...275 VDC/20...253 VAC |
| ambient_temperature | -25...85 °C |
| ip_rating | IP67 |
| approval_conformity | CEUKCAcULusWEEECCC |
