Description

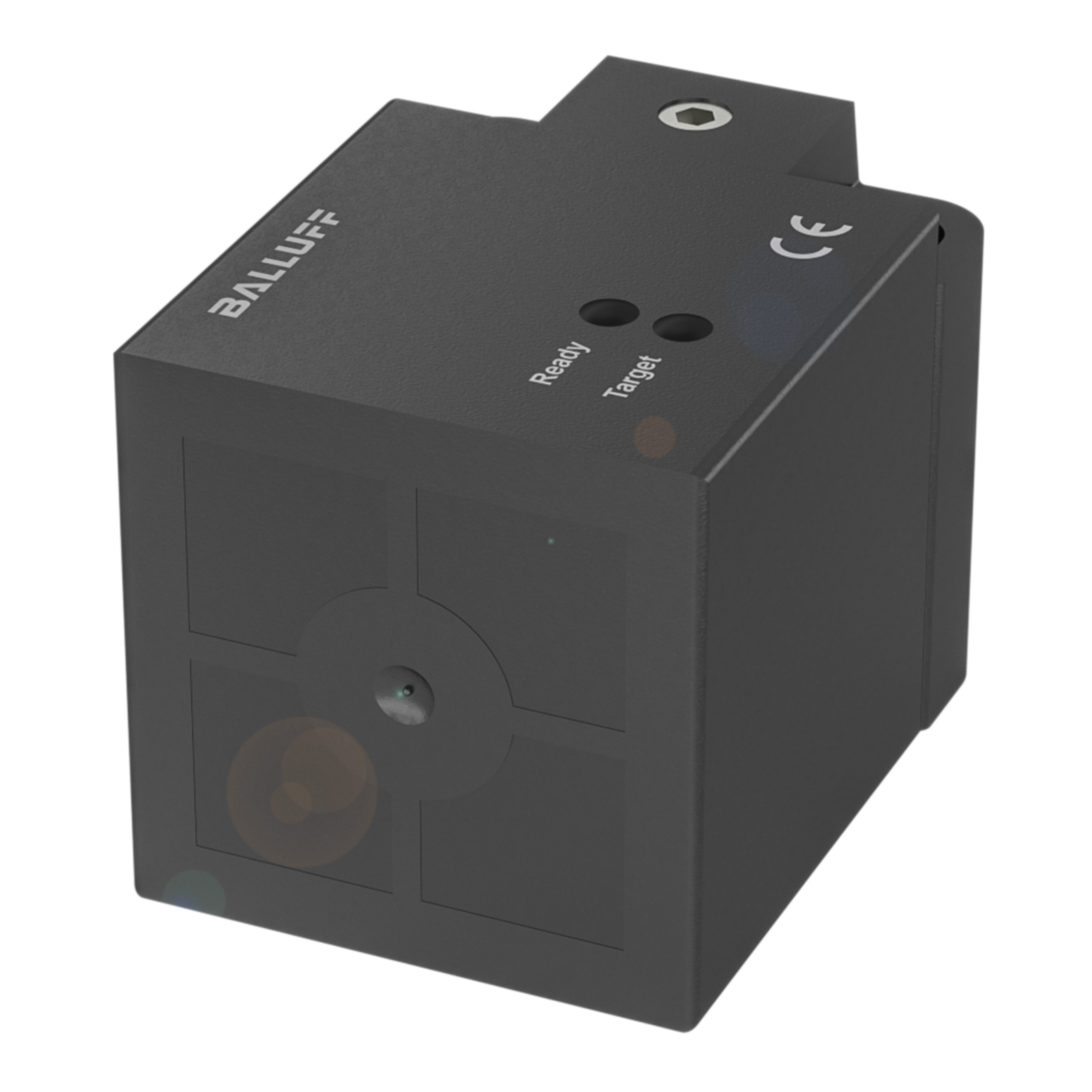

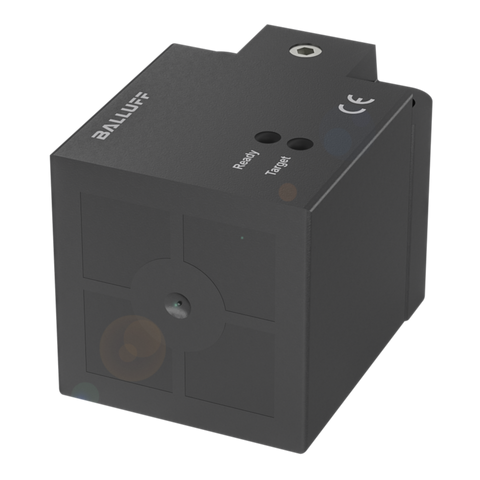

xThis inductive sensor detects the presence of metal targets without physical contact, switching a PNP normally open output when an object enters its 40 mm sensing range. Housed in a 40 x 40 x 62 mm PBT enclosure rated IP67, it is designed for non-flush installation and connects via an M12x1, 4-pin male connector. It operates on 10...30 VDC across an ambient temperature range of -10...70 °C, suiting use in industrial automation panels and machinery where reliable metal detection is required.
Key specifications
- IP rating: IP67
- Operating voltage: 10...30 VDC
- Connection: Connector, M12x1-Male, 4-pin
- Output: PNP normally open (NO)
- Operating temperature: -10...70 °C
- Dimensions: 40 x 40 x 62 mm
Specifications
x| dimension | 40 x 40 x 62 mm |
| style_housing | 40x40 |
| installation | non-flush |
| range | 40 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 100 Hz |
| housing_material | PBT |
| material_sensing | PBT |
| connection | Connector, M12x1-Male, 4-pin |
| operating_voltage | 10...30 VDC |
| ambient_temperature | -10...70 °C |
| ip_rating | IP67 |
| approval_conformity | CEUKCAcULusWEEE |
