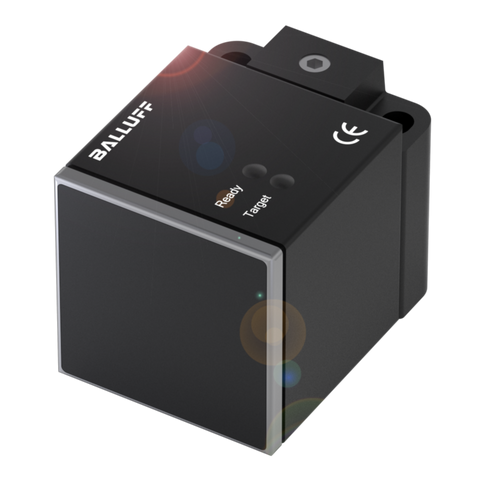

Balluff BES Q40KFU-PSC20B-S04G Inductive sensor, PNP, NO Part number BES021W

The Balluff BES Q40KFU-PSC20B-S04G is an inductive sensor. It connects via Connector, M12x1-Male, 4-pin and operates from 10...30 VDC. The housing is rated IP67 and the unit is specified for -25...70 °C. Approvals: CE, UKCA, cULus, WEEE.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: 40 x 40 x 62 mm
