Description

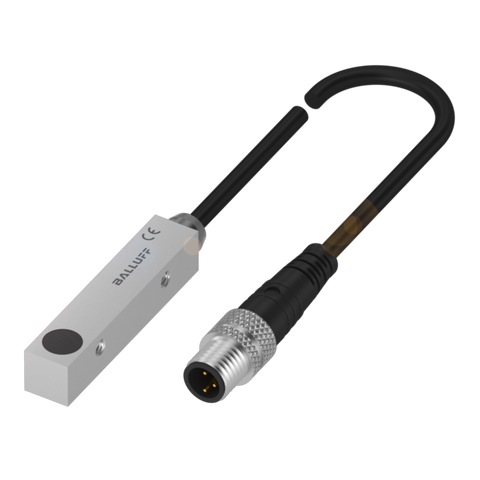

xThis is an inductive proximity sensor with a PNP normally open output, providing a rated operating distance of 2mm for flush mounting in automation panels and machinery. The housing is zinc die-cast with a PBT sensing surface and PUR jacket, rated IP67, and terminates in an M8x1 4-pin male connector on a 0.32m PUR cable. It operates from 10-30 VDC, supports a switching frequency of 3000 Hz, and is suited to position and object detection tasks in industrial control systems.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M8x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | cULus CE UKCA WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Zinc die-casting |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PBT |
| Size | 8x8 |
| Cable Length (mm) | 320mm |
| Cable Diameter (mm) | 3mm |
| Connection Type | M8x1 / Male / 4-pin / A-coded |
| Connection Style | Cable with connector, 0.32 m, PUR |
| Rated Operating Distance (mm) | 2mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 3000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
