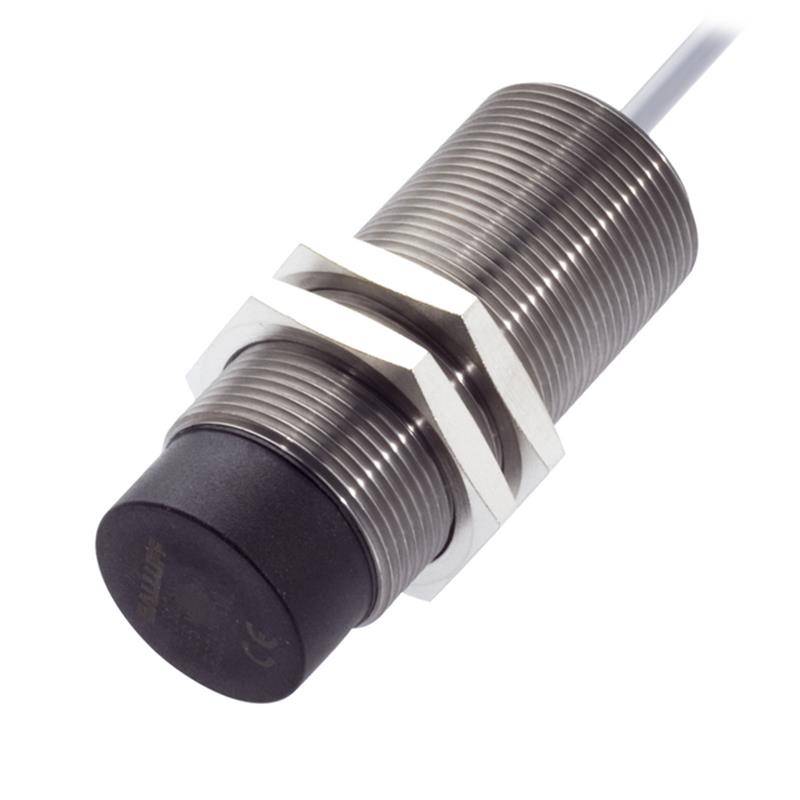

Balluff BES M30MM-PSC30F-BV02 Inductive sensor, PNP, NO Part number BES00AY

This is an inductive proximity sensor in an M30x1.5 threaded housing, designed for non-flush installation with a sensing range of 30 mm. It provides a PNP normally open output, operates from 10...30 VDC, and switches at frequencies up to 300 Hz, suitable for detecting metal targets in automation and machine-building applications. The housing is brass with a nickel-free coating and a PBT sensing face, rated IP67 for use in industrial environments across an ambient temperature range of -25 to 70°C, and terminates in a 2 m PVC cable.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PVC
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 30 x 76.5 mm
