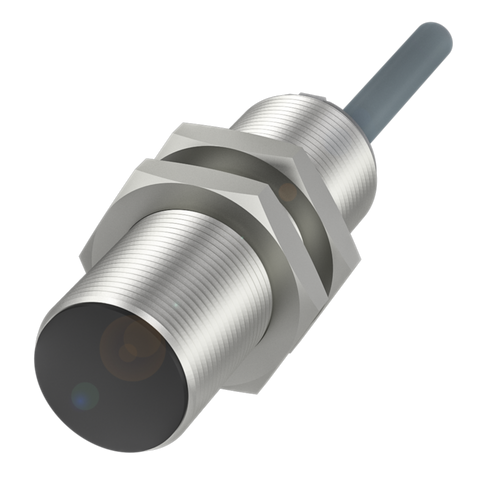

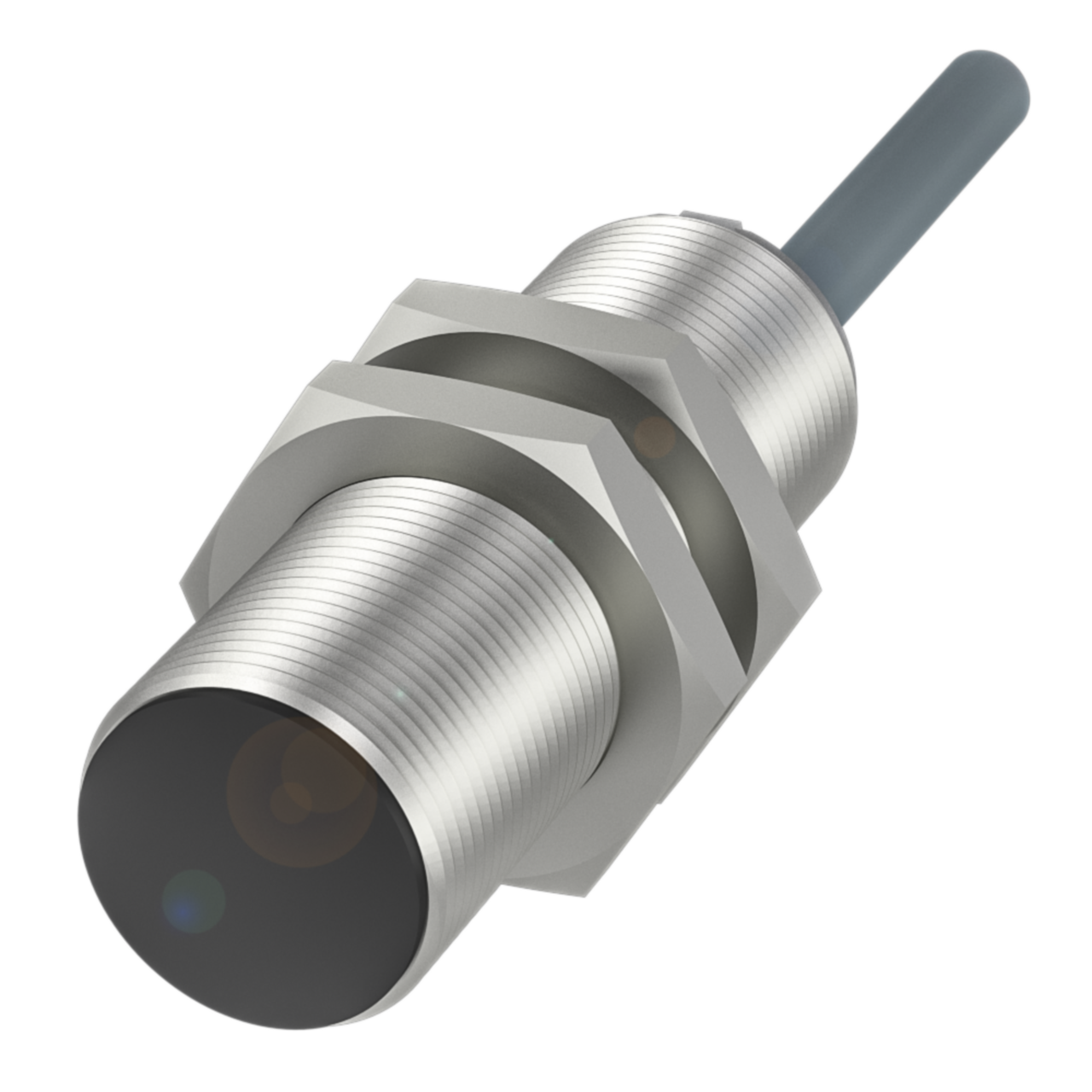

Balluff BES M18MI-NSC80B-BV03 Inductive sensor, NPN, NO Part number BES007J

This is an inductive proximity sensor with an M18x1 threaded brass housing, designed for flush mounting where space is restricted. It detects targets within an 8 mm sensing range and provides an NPN normally open output, switching at up to 1300 Hz, over a 10...30 VDC supply. Housed to IP68 with a 3 m PVC cable connection, it is suited to automation applications operating across a wide ambient temperature range, from -40°C to 85°C.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 3.00 m, PVC
• Output: NPN normally open (NO)
• Operating temperature: -40...85 °C
• Dimensions: Ø 18 x 55 mm
