Description

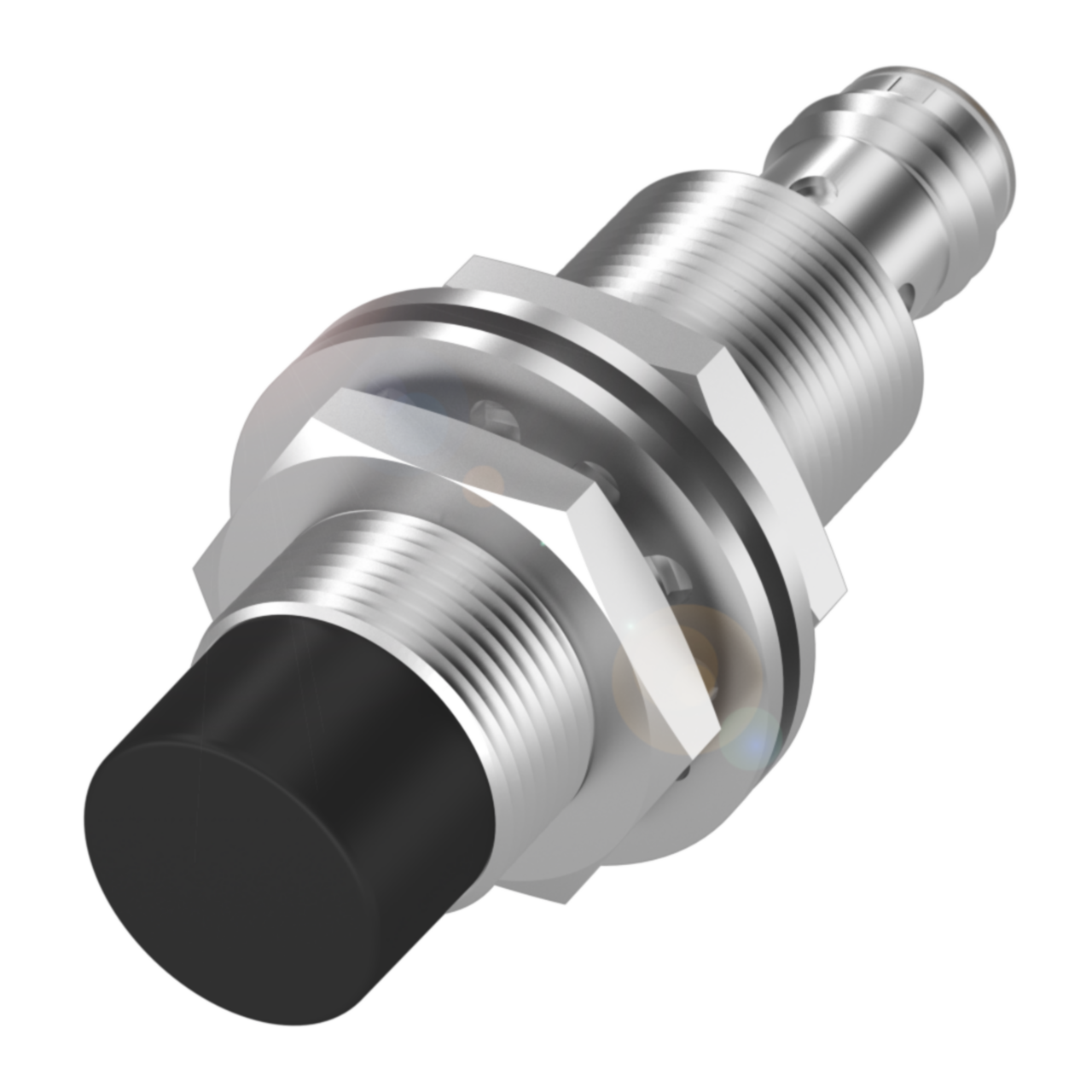

xThis M18 inductive sensor detects the presence of metal targets without physical contact and provides a PNP normally open switching output. It operates from a 10-30 VDC supply, rated at 200 mA, with a switching frequency of 400 Hz, and connects via an M12x1 male 3-pin A-coded connector. The brass housing with nickel-free coating and PBT sensing surface, combined with an IP68 rating, suit installation in panels and machines where the sensor may be exposed to washdown or harsh industrial environments.
Key specifications
- IP rating: IP68, according to BWN Pr 20
- Operating voltage: 10 - 30 VDC
- Rated voltage: 250 VAC
- Connection: M12x1 / Male / 3-pin / A-coded
- Output: PNP normally open (NO)
Specifications
x| IP Rating | IP68, according to BWN Pr 20 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 66mm |
| Part Diameter (mm) | 18mm |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 400 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Operating Current | 200 mA |
