Description

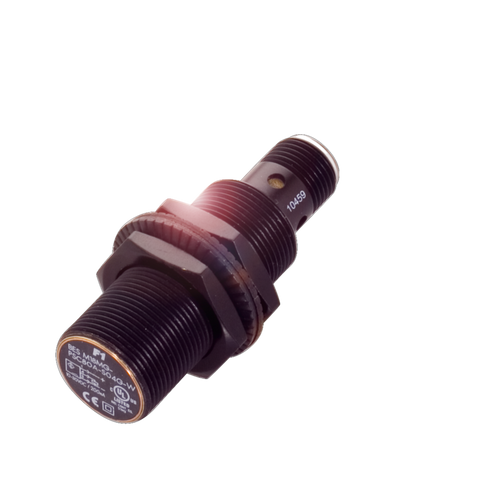

xThis inductive sensor is designed for industrial environments with weld-immune capabilities. It features a sensing distance of 12 mm, PNP normally open (NO) output, and offers IP67-rated protection. The sensor is resistant to magnetic interference.
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cULus WEEE /IEC 60947-5-2 |
| Material: Housing / Grip | Brass / PTFE-coated |
| Material: Sensing Surface / Contacts | PPS |
| Part Length (mm) | 55mm |
| Part Diameter (mm) | 18mm |
| Connection Type | M12x1 / Male / 3-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Operating Distance (mm) | 12mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 600 Hz |
| Rated Insulation Voltage | 60 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Quasi-flush mounting |
| Rated Operating Current | 200 mA |
