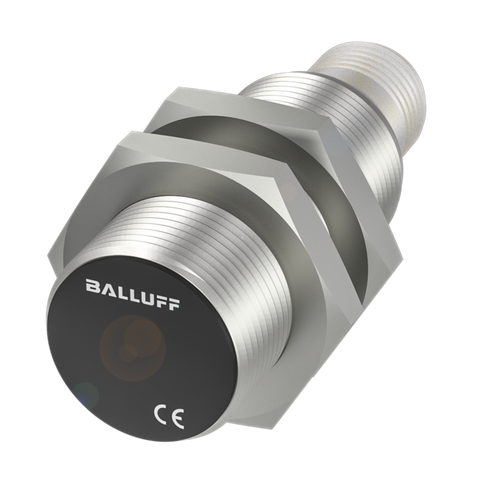

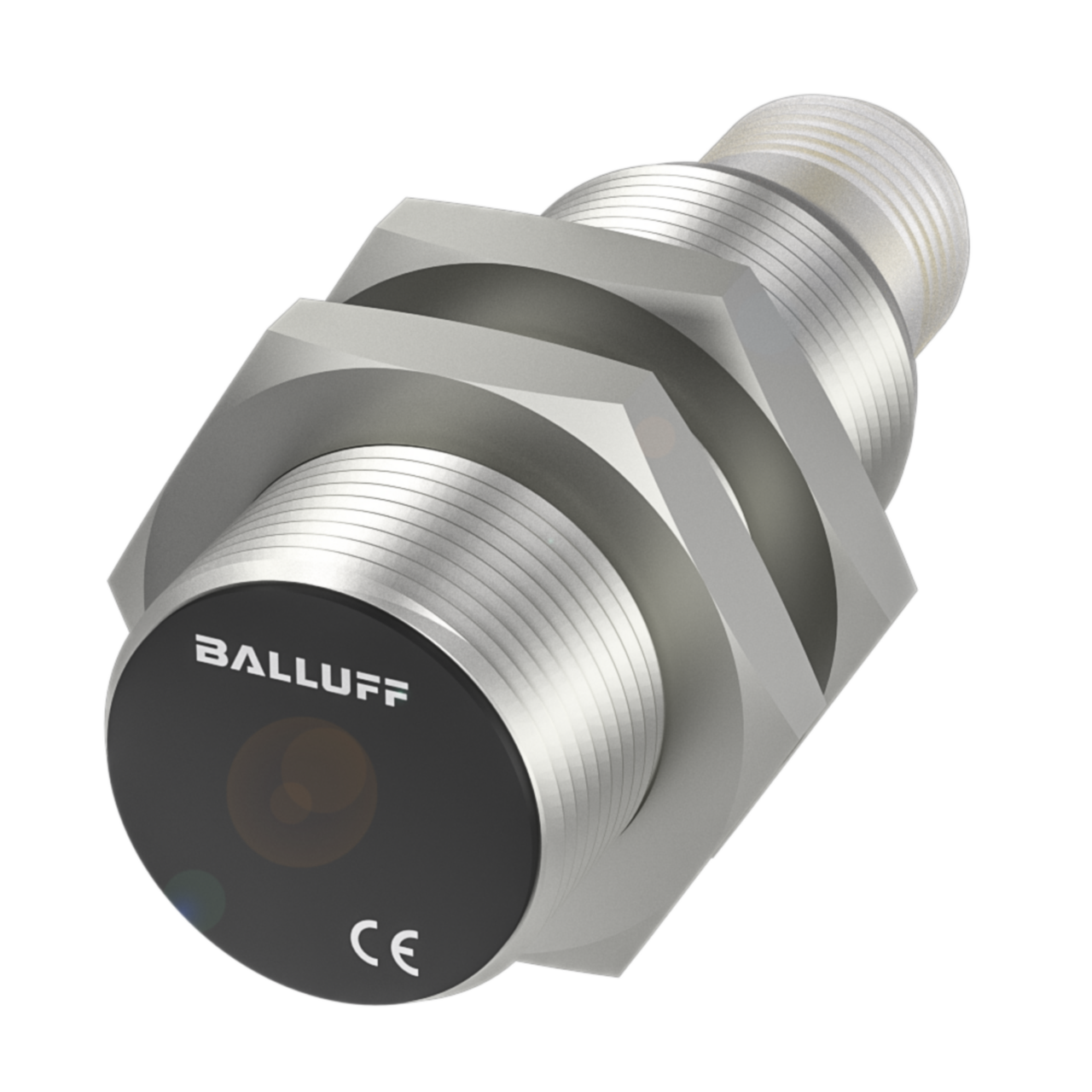

Balluff BES M18MF-GSC70B-S04K Inductive sensor, flush, NO, M18 Part number BES0069

This M18 inductive sensor detects metal targets without contact, providing a normally open switching output for position and presence sensing. Its flush-mount housing, with a 7 mm sensing range, allows installation level with surrounding metalwork where side clearance is limited, such as within machine frames or guarding. The brass, nickel-free coated housing and IP67 rating support use in washdown or industrial environments, with connection made via an M12x1 four-pin connector.

Key specifications

• IP rating: IP67
• Operating voltage: 10...36 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: polarized normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 18 x 50 mm
