Description

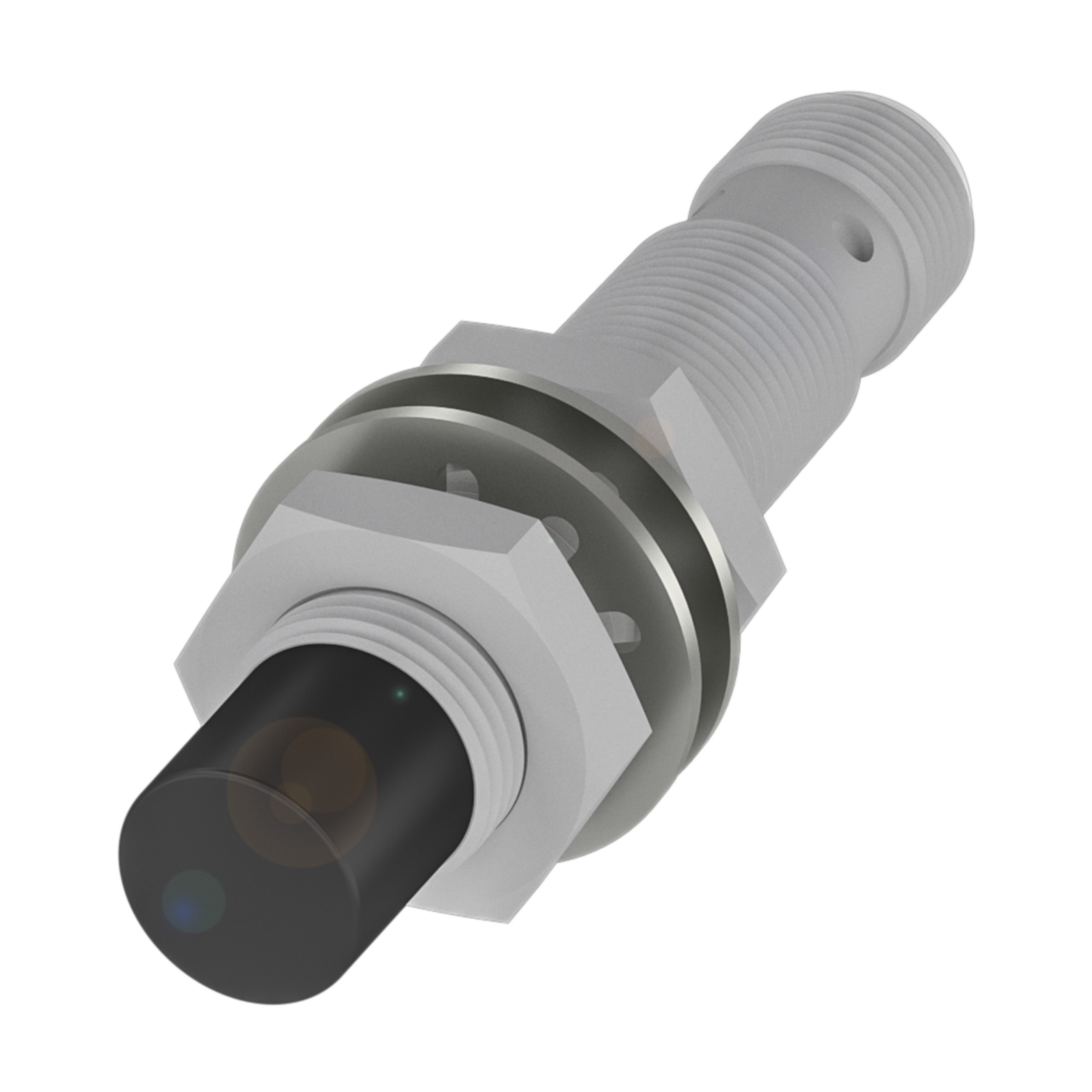

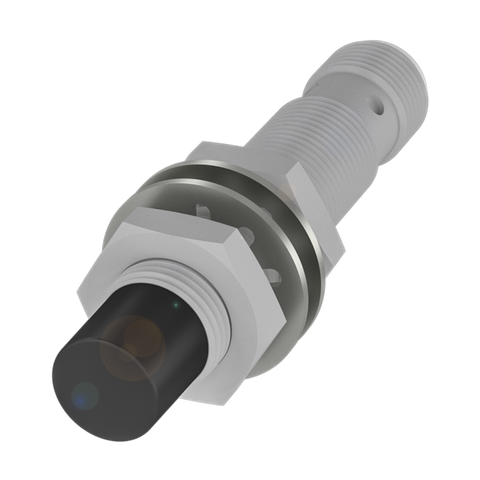

xThe BES M12ML-PSC80E-S04G-W is an M12x1 inductive proximity sensor with a PNP normally open output, detecting metal targets at a rated operating distance of 8mm. Its brass, PTFE-coated housing and IP67 rating suit non-flush mounting in environments where washdown or contaminant exposure is a concern. Operating from 10-30 VDC with a switching frequency of 2000 Hz, it connects via a male 4-pin A-coded M12x1 connector, making it suitable for automated machinery and panel-based control systems requiring reliable metal detection.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Non-flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / PTFE-coated |
| Material: Sensing Surface / Contacts | LCP / PTFE |
| Size | M12x1 |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 8 Nm |
| Rated Operating Distance (mm) | 8mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 2000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Non-flush mounting |
| Rated Operating Current | 200 mA |
Documents
