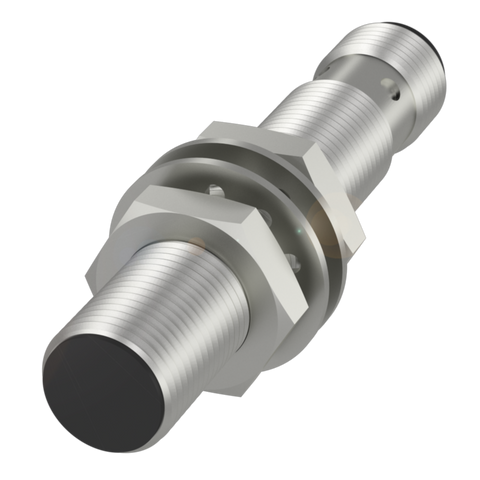

Balluff BES M12MI-PSC40B-S04G-M02 Inductive sensor, PNP, NO Part number BES05F9

This is an M12-threaded inductive proximity sensor with a PNP normally open switching output, detecting metal targets up to 4 mm at a switching frequency of 1000 Hz. The brass, nickel-free coated housing is designed for flush mounting, suiting installations where the sensor sits level with surrounding metalwork. With an IP68 rating, an operating range of 10...30 VDC and an ambient temperature range of -25...70 °C, it is suited to automation panels and machine builds exposed to washdown or harsh industrial conditions. Connection is made via an M12x1 4-pin male connector.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 65 mm
