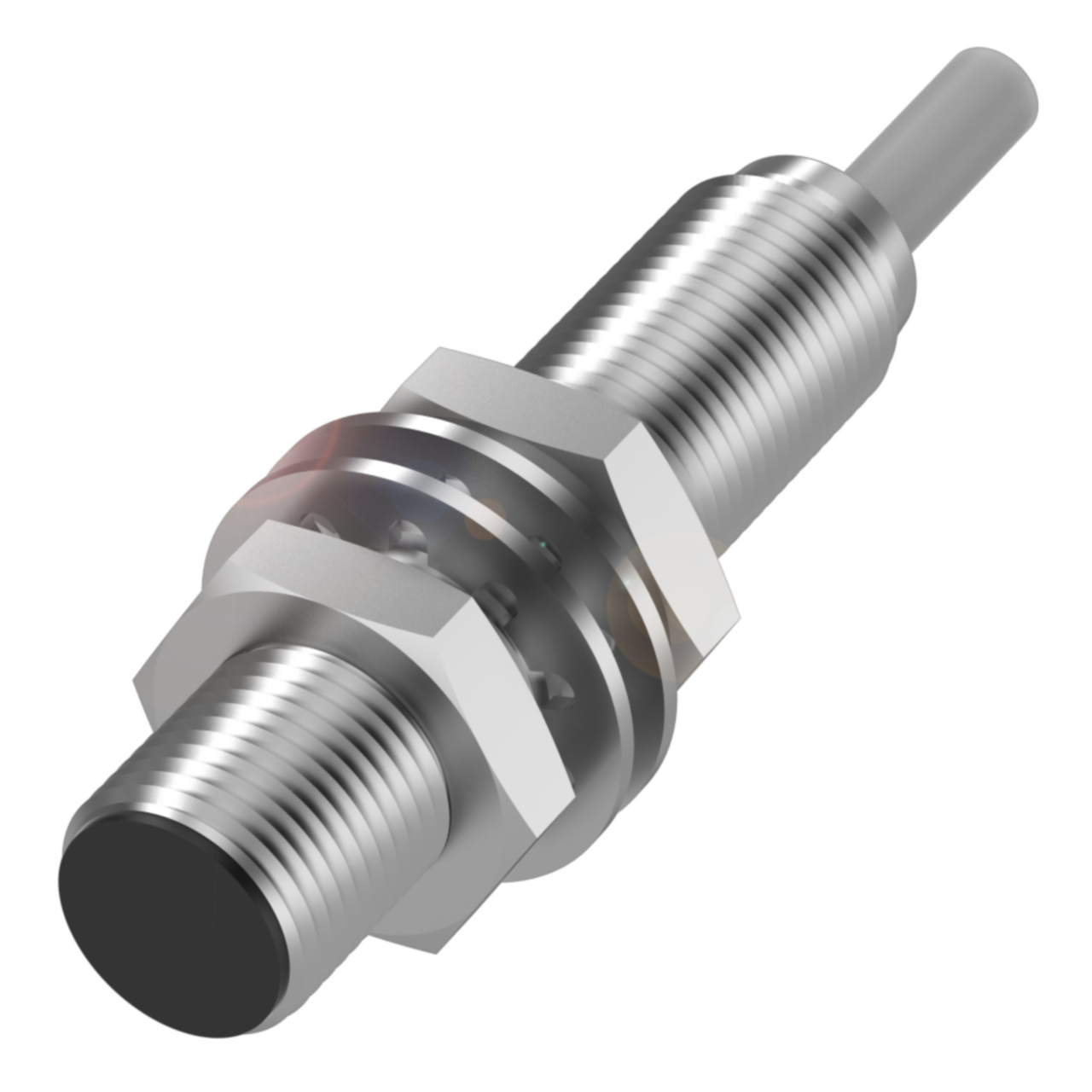

Balluff BES M12MI-PSC40B-BV02 Inductive sensor, PNP, NO Part number BES0064

This inductive sensor detects metal targets at a sensing range of 4 mm and provides a PNP normally open switching output. Housed in an M12x1 brass, nickel-free coated body suited to flush mounting, it operates from a 2.00 m PVC cable connection across a 10...30 VDC supply range. With an IP68 rating and an operating temperature range of -25...70 °C, it is suited to industrial automation applications requiring reliable metal object detection in compact installation spaces.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PVC
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 53 mm
