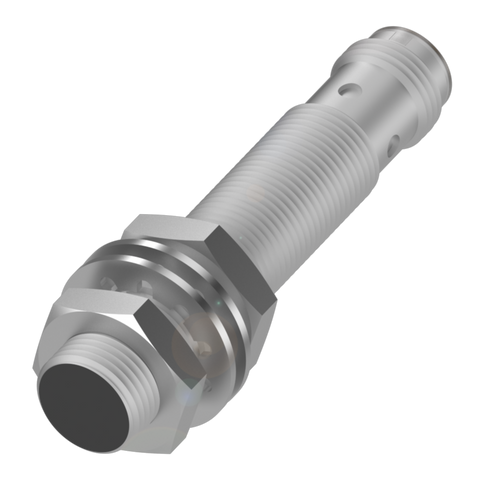

Balluff BES M12MI-PSC40A-S04G-W08 Inductive sensor, PNP, NO Part number BES05KT

This M12 inductive sensor detects metal targets at a rated operating distance of 4mm and provides a PNP, normally open output, operating on 10–30 VDC. Its brass, PTFE-coated housing and PBT sensing surface give it an IP68 rating, with a specified operating temperature range of -40°C to 85°C, making it suitable for use in harsh industrial environments. The M12 x 1 thread and 3-pin male M12 connector allow straightforward mounting and integration into automation panels and machine builds, with a switching frequency of 2000Hz supporting fast detection cycles.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12 / Male / 3 Pin
