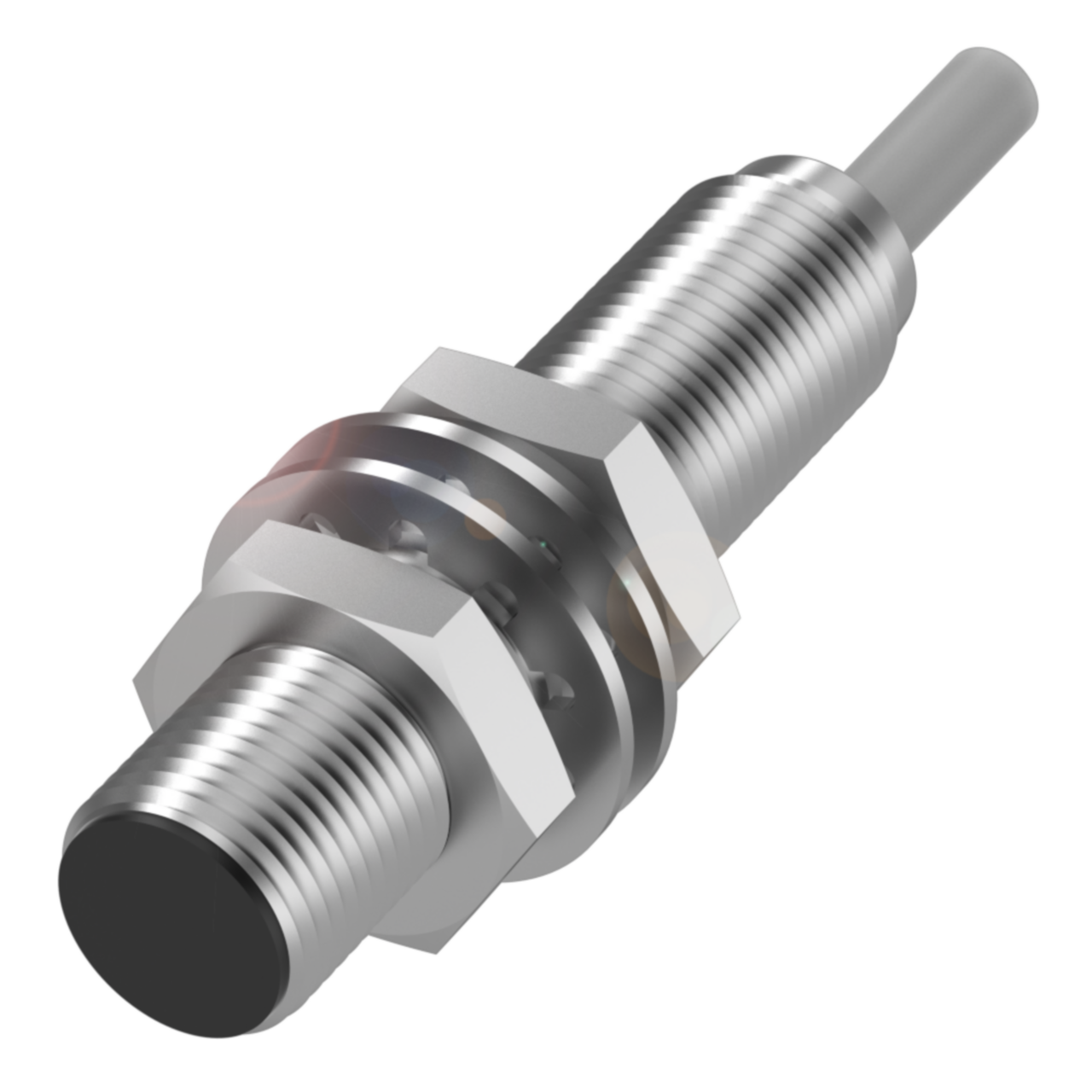

Balluff BES M12MI-PSC20B-BV03 Inductive sensor, PNP, NO Part number BES005W

This inductive sensor detects the presence of metal targets without physical contact, using a PNP normally open output to switch at ranges of up to 2 mm. The M12x1 brass housing is designed for flush mounting and offers an IP68 rating, making it suitable for use in wet or washdown environments within automated machinery and panels. It operates from a 10...30 VDC supply and connects via an integral 3 m PVC cable, with an ambient temperature range of -25...70 °C supporting use across a variety of industrial settings.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 3.00 m, PVC
• Output: PNP normally open (NO)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 53 mm
