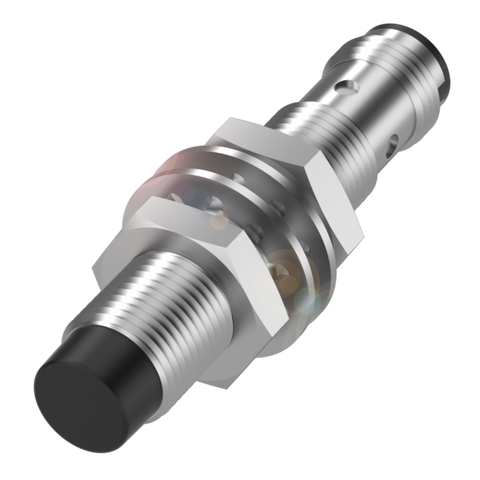

Balluff BES M12MG-PSC80F-S04G Inductive sensor, PNP, NO
Balluff BES M12MG-PSC80F-S04G Inductive sensor, PNP, NO
Balluff BES M12MG-PSC80F-S04G Inductive sensor, PNP, NO

Balluff BES M12MG-PSC80F-S04G Inductive sensor, PNP, NO

Dimension Ø 12 x 60 mm Style Housing M12x1 Installation non-flush Range 8 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES004N
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 24 left in stock
Description
Description
x
Dimension
Ø 12 x 60 mm
Style Housing
M12x1
Installation
non-flush
Range
8 mm
Switching output
PNP Normally open (NO)
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-free coated
Material: Sensing Surface / ContactsPBT
Part Length (mm)60mm
Part Diameter (mm)12mm
Connection TypeM12x1 / Male / 4-pin / A-coded
Tightening Torque10 Nm
Rated Operating Distance (mm)8mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)1000 Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeNon-flush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
