Description

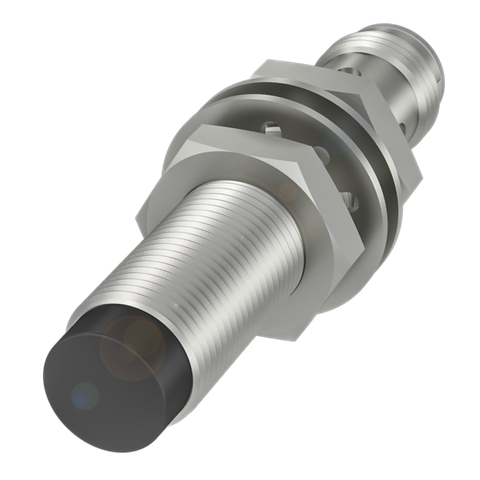

xThis inductive sensor from Balluff detects metal targets without contact, providing a PNP normally open switching output at an operating voltage of 10...30 VDC. Housed in a Ø 12 mm nickel-free coated brass body with a non-flush installation style, it offers a sensing range of 12 mm and connects via an M12x1 male, 3-pin connector. With an IP68 rating and an ambient temperature range of -25...70 °C, it is suited to industrial automation applications where exposure to moisture, dust or washdown conditions is expected.
Key specifications
- IP rating: IP68, according to BWN Pr 20
- Operating voltage: 10...30 VDC
- Connection: Connector, M12x1-Male, 3-pin
- Output: PNP normally open (NO)
- Operating temperature: -25...70 °C
- Dimensions: Ø 12 x 60 mm
Specifications
x| dimension | Ø 12 x 60 mm |
| style_housing | Ø 12 mm |
| installation | non-flush |
| range | 12 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 120 Hz |
| housing_material | Brass, Nickel-free coated |
| material_sensing | PBT |
| connection | Connector, M12x1-Male, 3-pin |
| operating_voltage | 10...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP68, according to BWN Pr 20 |
| approval_conformity | cULusCEUKCAWEEE |
