Description

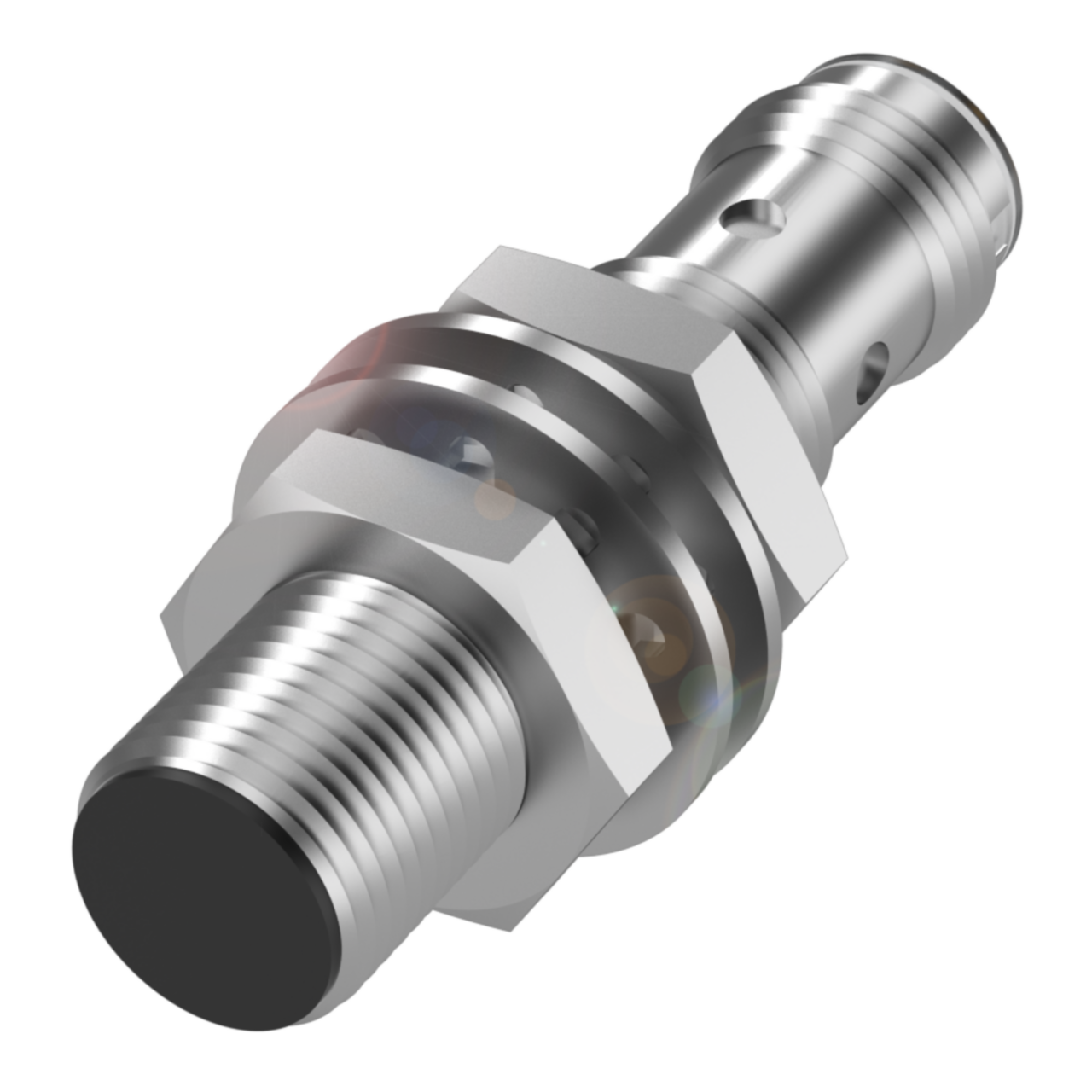

xThis is an M12 inductive proximity sensor with a PNP normally open output, offering a rated operating distance of 4mm and flush mounting suitability. The housing is brass with a nickel-free coating and PBT sensing surface, and the IP68 rating supports use in washdown or contaminated industrial environments. It operates from 10-30 VDC, switches at up to 2500 Hz, and connects via an M12x1, 4-pin, A-coded male connector, making it suitable for compact automation panels and machine-mounted position detection.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 250 VAC
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 50mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 2500 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
