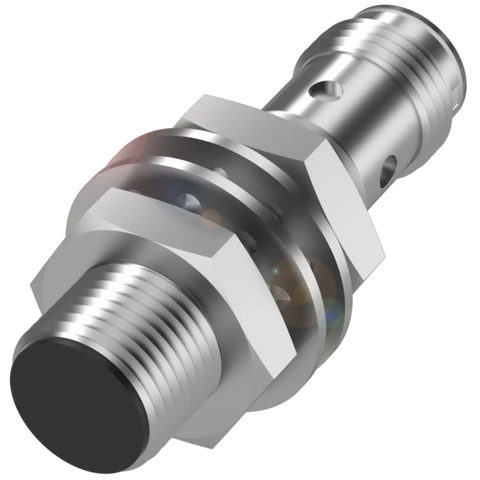

Balluff’s standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions.The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
IP Rating | IP68 |
Compliance/Certifications | IEC 60947-5-2 / CE UKCA cULus WEEE |
Material: Housing / Grip | Brass / Nickel-free coated |
Material: Sensing Surface / Contacts | PBT |
Part Length (mm) | 45 / 29,50mm |
Part Diameter (mm) | 12mm |
Connection Type | M12x1 / Male / 4-pin / A-code |
Connection Style | M12x1 |
Tightening Torque | 10 Nm |
Rated Operating Distance (mm) | 4mm |
Switching Output | PNP normally open (NO) |
Switching Frequency (Hz) | 2500Hz |
Rated Insulation Voltage | 250 VAC |
Operating Voltage | 10 - 30 VDC |
Mounting Type | Flush mounting |
Current Rating / Rated Current | 200 mA |
