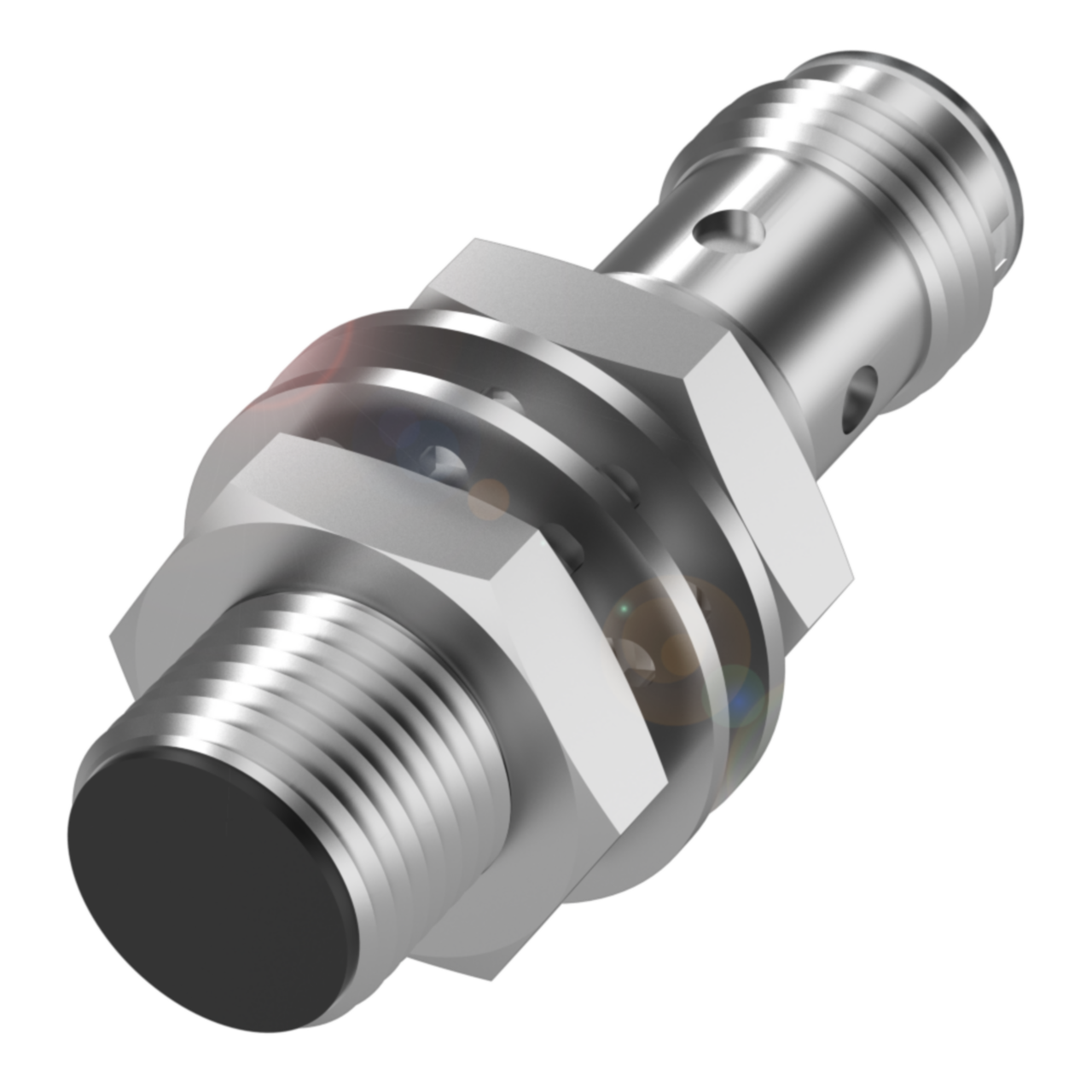

Balluff BES M12ME-POC20B-S04G-003 Inductive sensor, PNP, NC Part number BES00EA

This inductive sensor detects the presence of metal targets without physical contact, providing a PNP normally-closed switching output. Housed in an M12x1 brass, nickel-free coated body measuring Ø12 x 45 mm, it is designed for flush mounting with a sensing range of 2 mm. It operates from 10 to 30 VDC, connects via an M12x1 4-pin male connector, and carries an IP68 rating for use in demanding industrial environments across an ambient temperature range of -25 to 70°C.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Connector, M12x1-Male, 4-pin
• Output: PNP normally closed (NC)
• Operating temperature: -25...70 °C
• Dimensions: Ø 12 x 45 mm
