Description

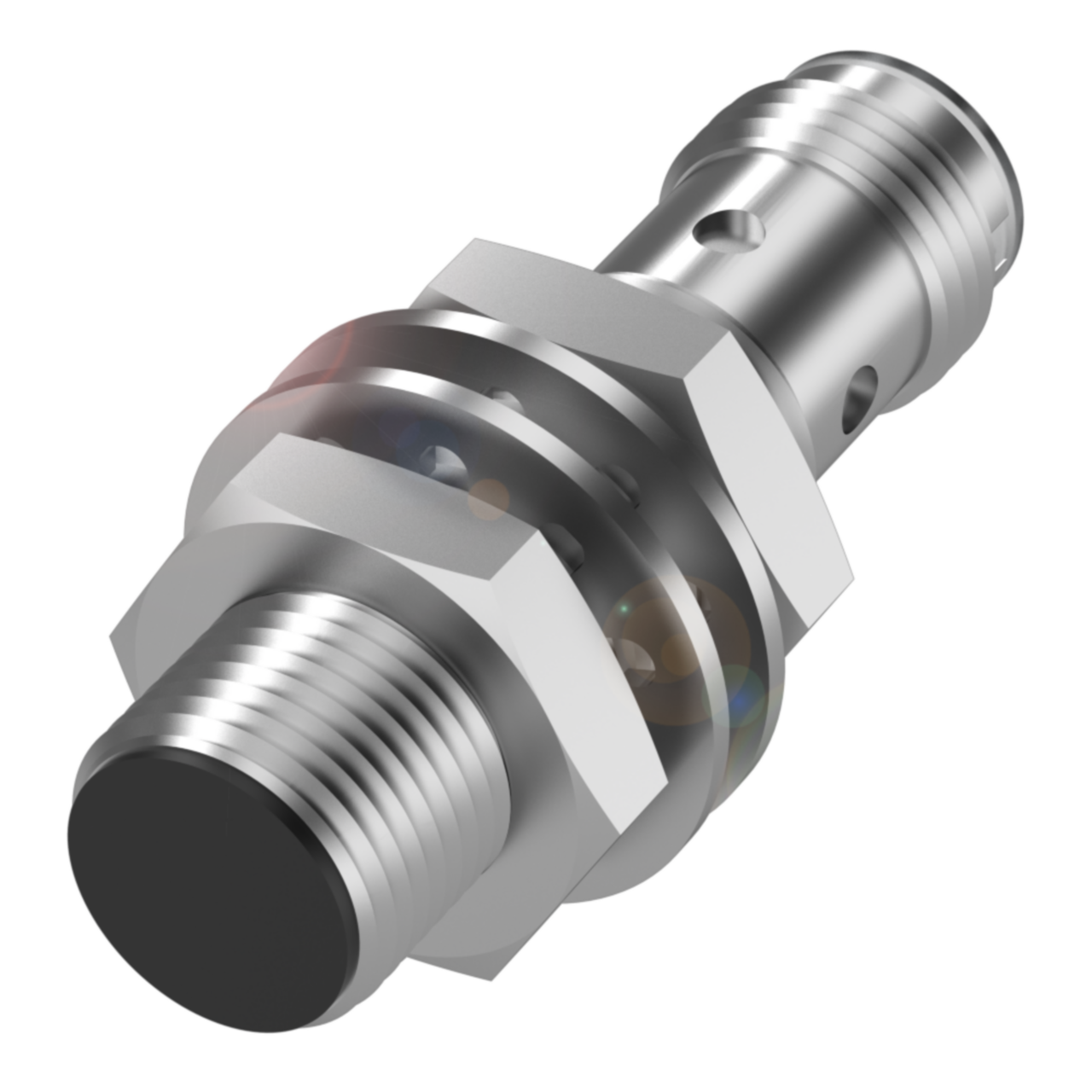

xThe BES M12ME-NSC40B-S04G-003 is an M12 inductive proximity sensor with an NPN normally open output, detecting metal targets at a rated operating distance of 4mm. It is designed for flush mounting and operates on a 10-30 VDC supply, connecting via an M12x1 4-pin male A-coded connector. The brass housing and IP68 rating suit installation in industrial environments where exposure to dust and moisture is expected, with a switching frequency of 2500 Hz supporting fast detection cycles.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: NPN normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 45mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | NPN normally open (NO) |
| Switching Frequency (Hz) | 2500 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
