Balluff BES M12EN-PAC20B-BV03 Inductive sensor, PNP, NO/NC Part number BES057P

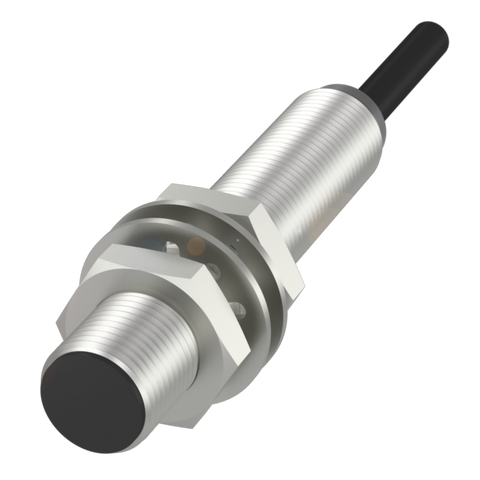

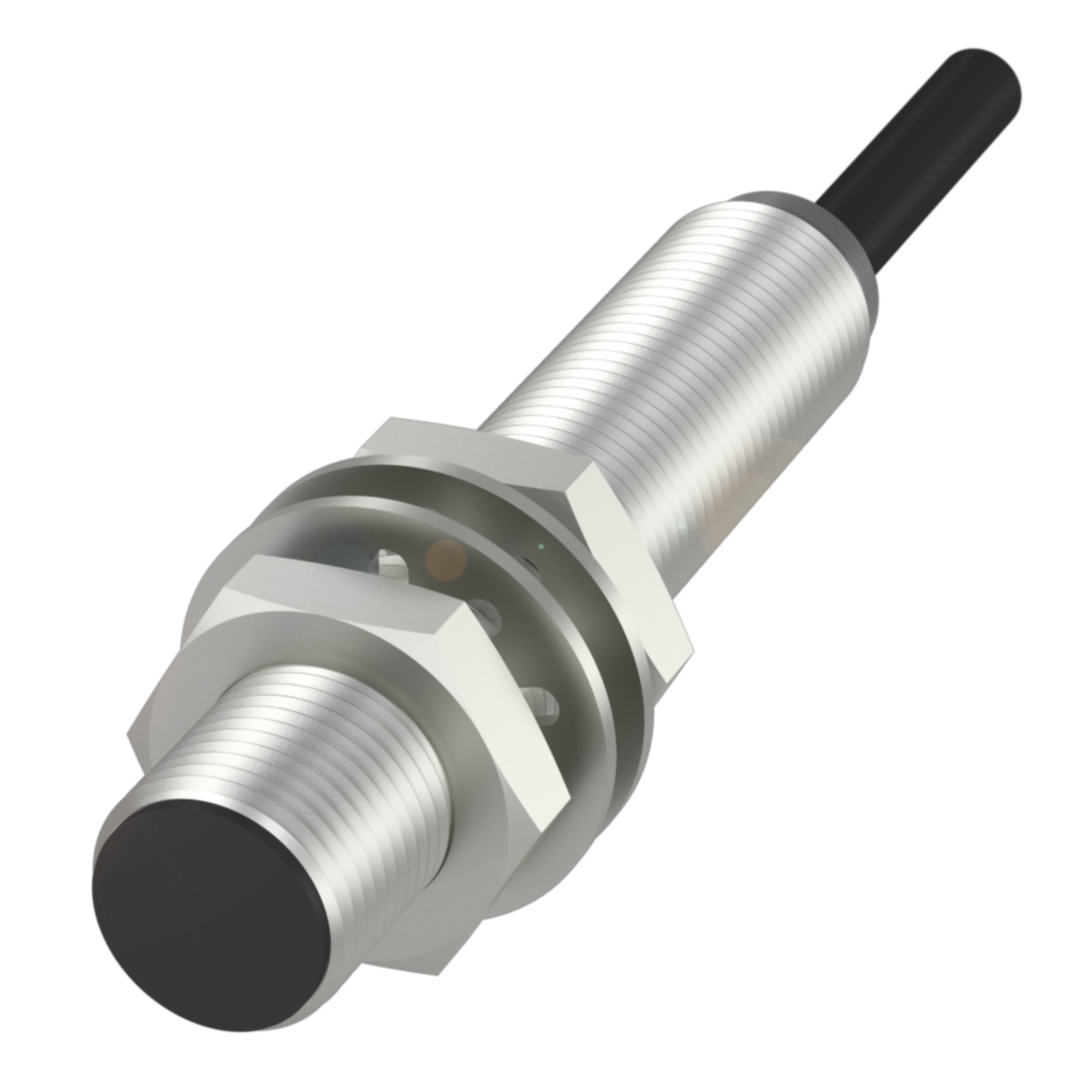

This is an inductive proximity sensor with an M12x1 stainless steel housing, dimensioned Ø 12 x 63 mm and designed for flush mounting. It detects metal targets at a sensing range of 2 mm and provides a PNP normally open/normally closed switching output at frequencies up to 4500 Hz, operating from 10...30 VDC. The sensor is fitted with a 3 m PVC cable, carries an IP68 rating, and is suited to use across an ambient temperature range of -40...85 °C, making it appropriate for automation applications requiring reliable detection in harsh or washdown environments.

Key specifications

• IP rating: IP68
• Operating voltage: 10...30 VDC
• Connection: Cable, 3 m, PVC
• Output: PNP normally open/normally closed (NO/NC)
• Operating temperature: -40...85 °C
• Dimensions: Ø 12 x 63 mm
