Description

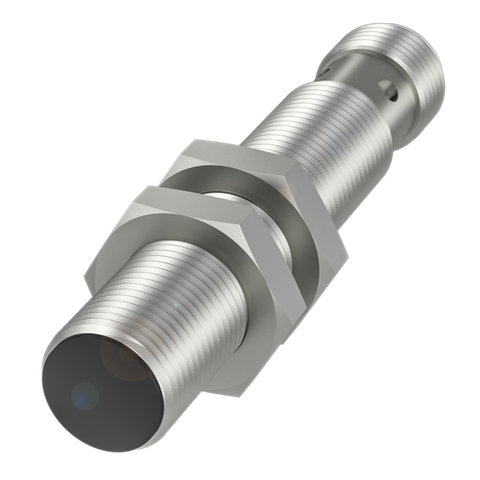

xThis is an M12 inductive proximity sensor with a PNP normally open output and a rated operating distance of 4mm, housed in a stainless steel body with an LCP sensing face for flush mounting. It operates on 10 to 30 VDC and connects via an M12x1, 4-pin A-coded male connector, with an IP68 rating suited to washdown or contaminated industrial environments. The switching frequency of 1000 Hz supports detection of fast-moving metal targets on automated machinery and panel-mounted control systems.
Key specifications
- IP rating: IP68
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Output: PNP normally open (NO)
- Mounting: Flush mounting
Specifications
x| IP Rating | IP68 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Sensing Surface / Contacts | LCP |
| Part Length (mm) | 65mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 12 Nm |
| Rated Operating Distance (mm) | 4mm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 1000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Rated Operating Current | 200 mA |
