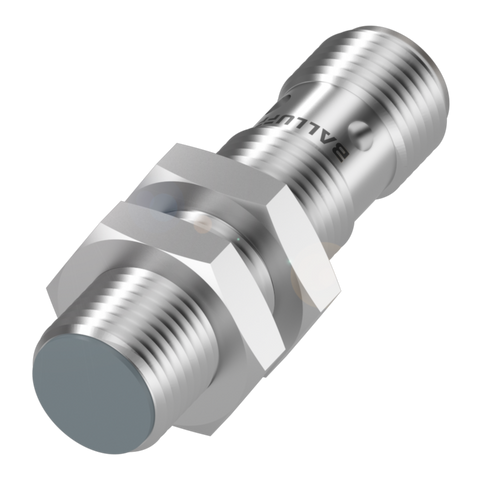

Balluff BES M12EE-PSC40B-S04G Inductive sensor, PNP, NO Part number BES014W

The BES M12EE-PSC40B-S04G is an inductive proximity sensor with a PNP normally open output, housed in a stainless steel M12 body with an LCP sensing face. It detects metal targets at a rated operating distance of 4mm and is designed for flush mounting, suiting installation where the sensor face sits level with surrounding metalwork. With an IP68 rating and an M12x1 4-pin male connector, it is suited to automation and machine-building applications where washdown or damp conditions are present. Operating from 10-30 VDC and switching at up to 2000 Hz, it is applicable in position and part detection tasks on production equipment.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
