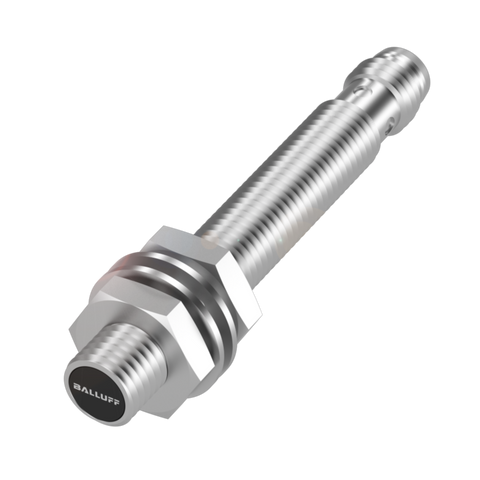

Balluff BES M08MI-PSC30B-S49G Inductive sensor, PNP, NO
Balluff BES M08MI-PSC30B-S49G Inductive sensor, PNP, NO

Balluff BES M08MI-PSC30B-S49G Inductive sensor, PNP, NO

Vendor: Balluff
SKU: BES054N
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 4 left in stock
Description
Description
x
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsCE UKCA WEEE / IEC 60947-5-2
Material: Housing / GripBrass / Nickel-free coated
Material: Sensing Surface / ContactsPBT
SizeM8x1
Connection TypeM8x1 / Male / 3-pin
Tightening Torque3Nm
Rated Operating Distance (mm)3mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)1200 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
