Description

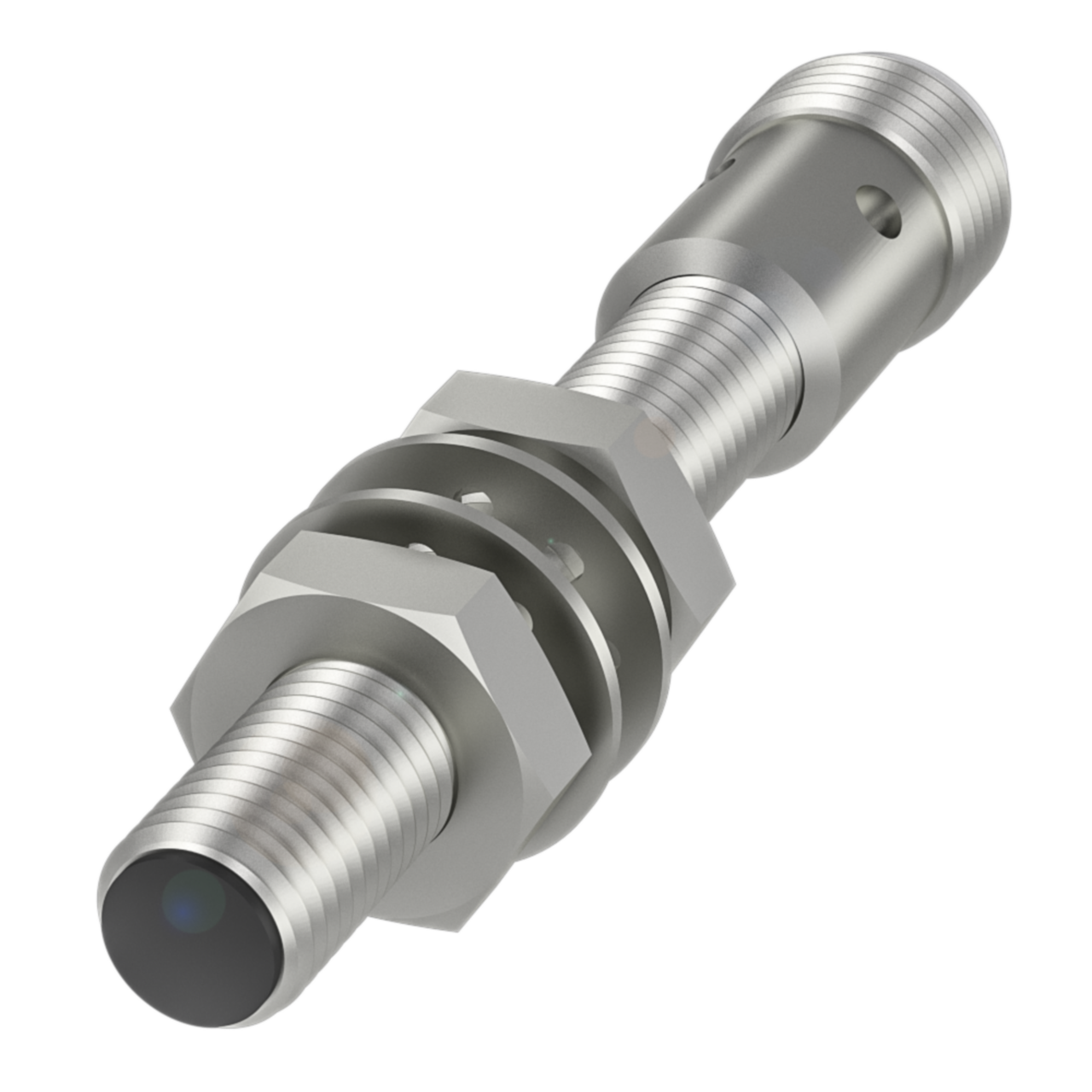

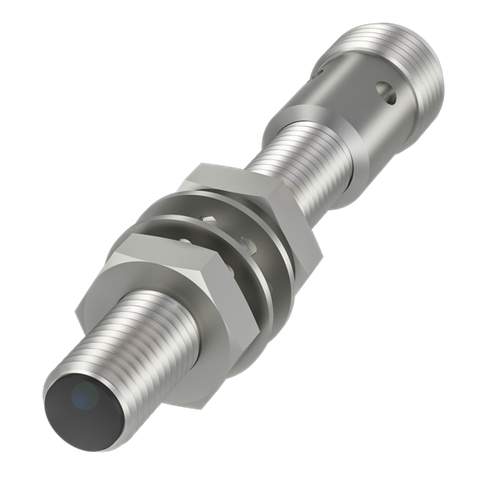

xThis is an M8-threaded inductive proximity sensor with a PNP normally open switching output, designed for flush mounting in panels and machine frames. It offers a 2 mm sensing range and a switching frequency of 700 Hz, with an M12x1 4-pin connector for wiring into automation systems. The nickel-plated brass housing and IP67 rating suit installation in industrial environments across an operating temperature range of -25 to 70 °C, typically for detecting metal targets in tight mounting locations.
Key specifications
- IP rating: IP67
- Operating voltage: 12...30 VDC
- Connection: Connector, M12x1-Male, 4-pin
- Output: PNP normally open (NO)
- Operating temperature: -25...70 °C
- Dimensions: Ø 8 x 65 mm
Specifications
x| dimension | Ø 8 x 65 mm |
| style_housing | M8x1 |
| installation | for flush mounting |
| range | 2 mm |
| switching_output | PNP normally open (NO) |
| switching_frequency | 700 Hz |
| housing_material | Brass, nickel-plated |
| material_sensing | PA 12 |
| connection | Connector, M12x1-Male, 4-pin |
| operating_voltage | 12...30 VDC |
| ambient_temperature | -25...70 °C |
| ip_rating | IP67 |
| approval_conformity | CEUKCAcULusWEEE |
