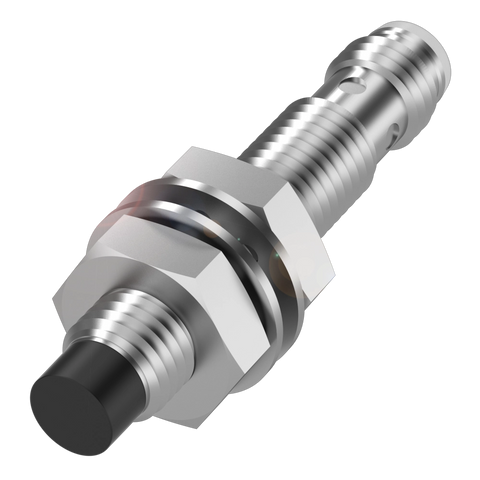

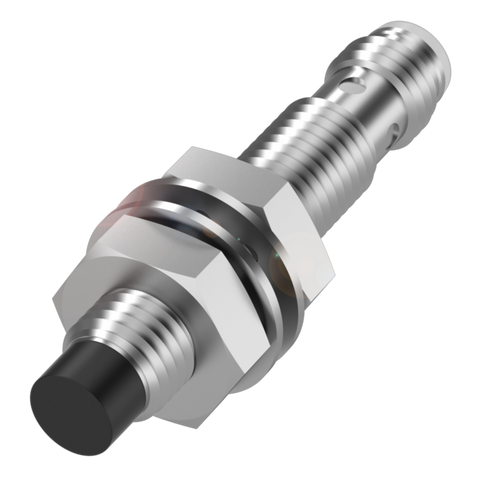

Balluff BES M08EH1-PSC60F-S49G Inductive sensor, PNP, NO
Balluff BES M08EH1-PSC60F-S49G Inductive sensor, PNP, NO
Balluff BES M08EH1-PSC60F-S49G Inductive sensor, PNP, NO

Balluff BES M08EH1-PSC60F-S49G Inductive sensor, PNP, NO

Dimension Ø 8 x 60 mm Style Housing M8x1 Installation non-flush Range 6 mm Switching output PNP Normally open (NO)
Vendor: Balluff
SKU: BES054Z
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x
Dimension
Ø 8 x 60 mm
Style Housing
M8x1
Installation
non-flush
Range
6 mm
Switching output
PNP Normally open (NO)
Specifications
Specifications
x
IP RatingIP68
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Sensing Surface / ContactsPBT
Part Length (mm)60mm
Part Diameter (mm)8mm
Connection TypeM8x1 / Male / 3-pin
Rated Operating Distance (mm)6mm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)1200 Hz
Rated Insulation Voltage250 VAC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Mounting TypeNon-flush mounting
Rated Operating Current200 mA
Documents
Documents
x
Download Datasheet
